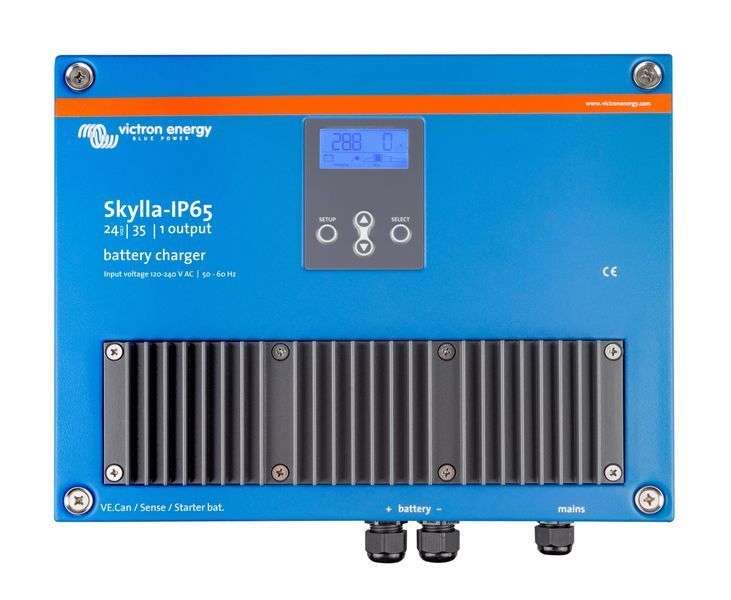

Victron Energy Skylla IP65 24/35 (1+1) 120/240V Charger - SKY024035000

Skylla IP65 24/35 (1+1) – is a professional 24V 35A battery charger designed for use in harsh environments. Thanks to its high IP65 protection rating, the device is protected against dust, moisture, and corrosion, making it an ideal solution for marine, automotive, and industrial applications.

Key Benefits of the Skylla IP65 24/35 (1+1)

• IP65 protection – resistance to dust, moisture, and corrosion.

• Smart 7-stage adaptive charging algorithm – ensures efficient and safe battery charging.

• Overheating and overload protection – automatic current reduction at high temperatures.

• Parallel synchronization capability – multiple chargers can operate together via CAN-bus.

• LCD display – visual monitoring of charging status and parameter settings.

• Compatibility with Li-Ion (LiFePO4) batteries – support for control via CAN-bus.

• Wide input voltage range (90–265 V AC) – stable operation even with significant voltage fluctuations in the mains.

• Wide temperature range (-20°C to +60°C) – stable operation in extreme conditions.

• Alarm Relay (relay output for signaling) – allows the device to be integrated into automation systems.

Technical Features

• Intelligent Charging Algorithm – automatically adjusts the absorption time depending on the battery discharge level.

• BatterySafe Mode – prevents excessive gas formation and extends battery life.

• Storage Mode – maintains the battery in long-term storage mode, reducing plate corrosion.

• Temperature Compensation – automatically adjusts the voltage according to changes in battery temperature.

• Battery voltage sense – adjusts the voltage to compensate for losses in the wires.

• Power supply mode – ensures a stable output voltage even without a battery.

• Forced Cooling – integrated fan for efficient heat dissipation.

• Overload and short-circuit protection – enhanced operational reliability.

Application scenarios

• Marine transport (yachts, boats) – corrosion protection, ability to draw power from shore power, operates normally in high humidity and salinity.

• Automotive and caravanning systems – support for two batteries, ideal for motorhomes (campers), RVs, and caravans.

• Solar power stations – compatible with Li-Ion batteries, controllable via CAN-bus. Enable ultra-fast recharging of batteries from the grid and generators in off-grid power systems.

• Industrial equipment – a reliable power source for mission-critical systems, including radio and other types of communication.

• Medical mobile stations – stable power even in challenging conditions.

Comparison of models in the series

Integration with chartplotters

The Skylla IP65 24/35 (1+1) 120/240V charger integrates with Navico, Raymarine, Garmin, and Furuno chartplotters via a Victron Energy GX series device (e.g., Cerbo GX). This allows data on battery charge status, energy consumption, and other parameters to be displayed directly on the chartplotter screen.​

Benefits of integration:

• Centralized monitoring: All data regarding the power system is available on a single screen, simplifying monitoring and control.​
• Ease of use: Ability to configure charger settings directly via the chartplotter interface.​
• Enhanced safety: Timely notification of potential malfunctions or deviations in the power system’s operation.​

Communication interfaces

• VE.Bus / CAN-bus (NMEA2000) – for network integration, remote monitoring and control, and connection to the Cerbo GX panel and similar devices.

• RJ45 UTP – for synchronizing parallel operation with other chargers.

• Remote control – ability to turn on/off via a relay input.
