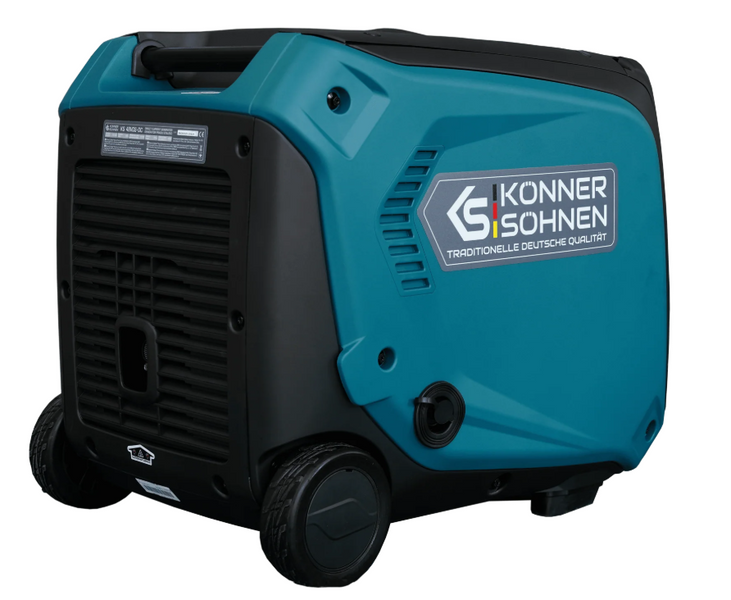

The Könner & Söhnen KS 48VS-DC DC generator is a specialized gasoline/gas generator for charging 48V battery systems, built to work with hybrid inverters, backup power systems, and autonomous energy complexes. The model provides stable DC output voltage, automatic start and efficient battery charging without the need for additional AC/DC chargers.
Key advantages of KS 48VS-DC
- Direct charging of 48V battery systems without additional converters
- Automatic AUTO operation mode with start when battery voltage drops
- Nominal power 3.3 kW and charging current up to 60 A
- Stable IUo charging characteristic for correct charging of LiFePO4 and other batteries
- External control via dry contacts (EXTERNAL CONTROL)
- Compact dimensions and transport wheels for mobile use
Technological features
- Works with 48V systems — support for ranges of 47-52 V, 48-54 V or 50-55 V depending on the version
- Automatic start when the lower battery voltage threshold is reached
- Charging with constant current up to 60-63 A with subsequent transition to voltage stabilization mode
- LED display with display of output voltage and current
- Support for external control via dry contacts of inverters, BMS or UPS
- 4-stroke gasoline/gas engine KS 240i with a power of 7.5 hp.
Usage scenarios
- Backup power supply of LiFePO4 battery systems 48V
- Hybrid solar power plants with Victron, Deye, MUST, Voltronic inverters
- Autonomous energy systems for homes and businesses
- Backup of server, telecommunications and industrial systems
Compatibility with inverters and battery systems
- Fully compatible with 48V systems from Victron Energy, Deye, MUST, LuxPower, Voltronic and other hybrid inverters
- Supports integration via dry contacts
- Suitable for LiFePO4, AGM, GEL and other 48V batteries
Technical specifications
- Nominal power: 3.3 kW
- Current: up to 60 A
- Voltage: 47-52 V / 48-54 V / 50-55 V
- Starting type: automatic / external control
- Fuel tank capacity: 12 l
- Fuel consumption: about 0.6 l/kWh
- Engine: KS 240i, 4-stroke petrol/gas
- Engine power: 7.5 hp
- Dimensions: 715 x 490 x 595 mm
- Weight: 39 kg
- Protection class: IP23M
- Noise level: 71 dB (7 m)
Service support in Ukraine
Total-Energo LLC provides professional selection, integration and configuration of KS DC series generators for working with battery systems and hybrid inverters. We help build stable backup power for home, business and energy facilities.
