KS 24VS-DC — this is a new-generation DC generator from Könner & Söhnen that combines cost-effectiveness and versatility.
The model is specifically designed for charging batteries with an operating voltage of 24–27 V, making it the optimal solution for backup power systems, solar inverters, and other off-grid solutions. The generator operates on the principle of a charger with an IUo characteristic, ensuring stable operation and a long battery life.
Key advantages of the KS 24VS-DC
- Dual-fuel system: gasoline
- Output voltage: 24–27 V
- Rated power: 1.6 kW
- Current: 60 A
- Engine: KS 100i, 79.7 cm³, 2.5 hp
- Fuel tank capacity: 5 L
- Start type: automatic (gasoline), manual, external
- Noise level: 62 dB
- Dimensions: 625 × 335 × 540 mm
- Weight: 21 kg
Features

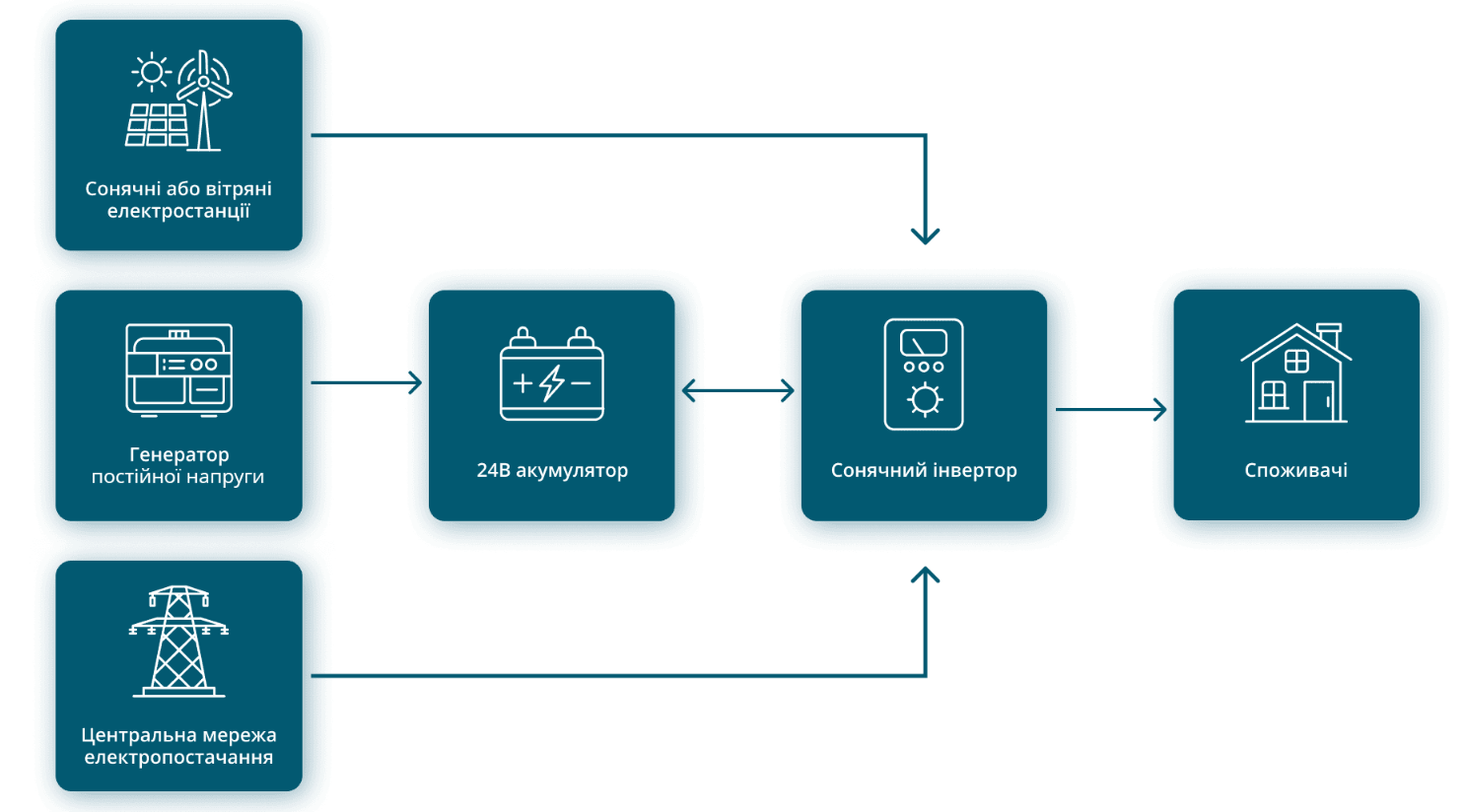

- Suitable for charging 24 V batteries in off-grid and backup power systems.
- Operates as an IUo-characteristic charger, extending battery life.
- Features an automatic start mode when the battery voltage drops below 24 V.
- Supports external control via “dry contacts” (inverters, BMS, UPS).
- Compact and economical, with low noise and fuel consumption.
- Protection against overvoltage and overload.
Service support in Ukraine
Total-Energo LLC provides full support to Könner & Söhnen customers in Ukraine: consulting, equipment selection, design, delivery, installation, warranty and post-warranty service.
