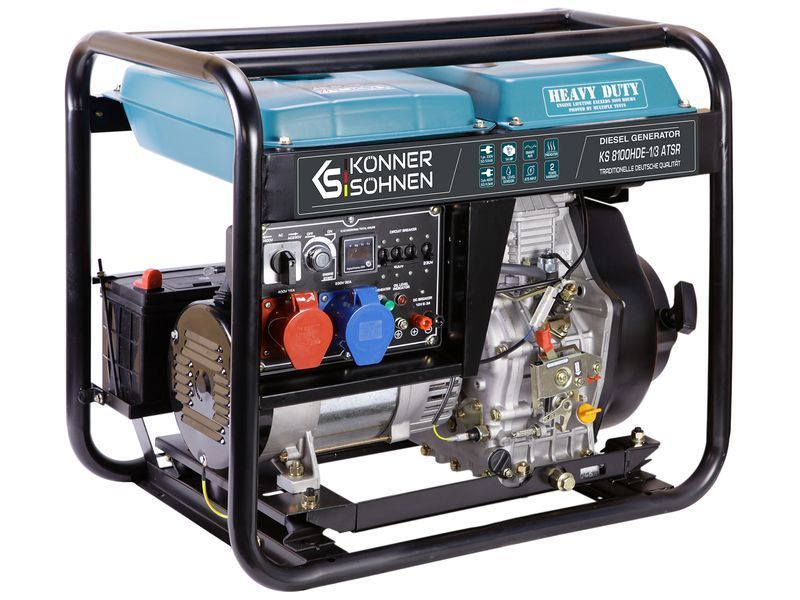

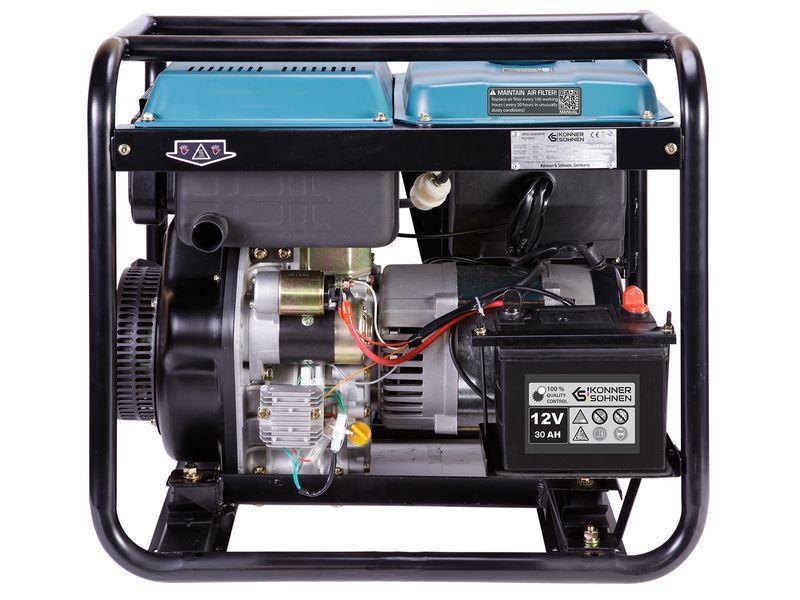

Könner & Söhnen KS 8100HDE - 1 / 3 ATSR - a reliable single-cylinder, 4-stroke, air-cooled generator with a maximum output of 5.5 kW in single-phase mode (230V) and 6.5 kW in three-phase mode (400V). TVS technology allows the generator to operate in single-phase or three-phase mode with virtually no loss of power. This generator can operate effectively for longer periods without interruption while consuming less fuel.
Könner & Söhnen generators embody the tradition of German quality, accessible to everyone!

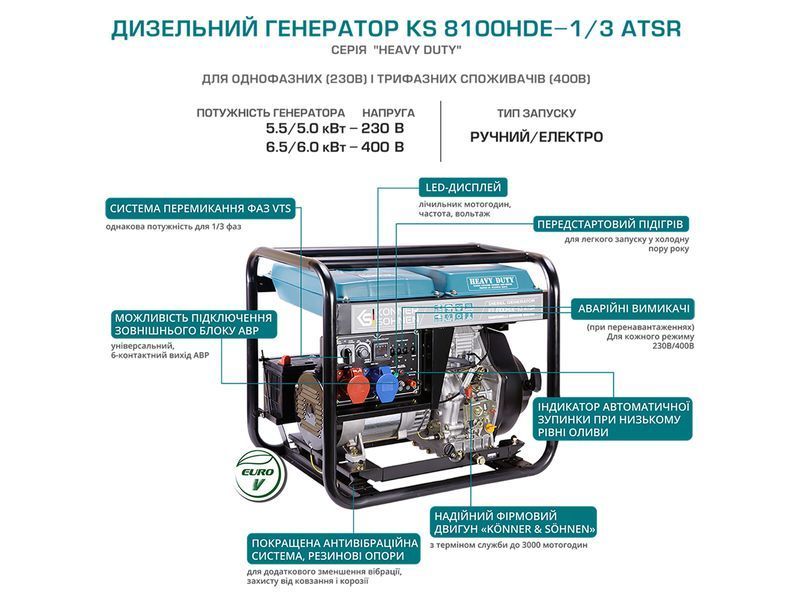

Key advantages of the KS 8100HDE - 1 / 3 ATSR generator
- Reliable EURO 5-compliant engines. Every engine used in the generators is manufactured specifically for Könner & Söhnen and has a unique serial number, enabling high-quality service support.
- High engine life. Operates for longer hours, without interruptions, with lower fuel consumption.
- Extended manufacturer’s warranty — 2 years (or 2,000 engine hours).
- Operation in harsh conditions and safe transport thanks to the reinforced frame structure with special upper protective strips.
- Equipped with dual anti-vibration mounts. The generator does not damage floor coverings and is protected from unwanted scratches.
- Innovative VTS (Voltage Transfer Switch) phase switching system with automatic protection for each mode. Virtually identical power output for single-phase and three-phase electrical loads.
- Pre-start warm-up function. Quick start-up and efficient generator operation in winter at low temperatures.
- LED display - an ergonomic control panel allows for quick analysis of frequency, voltage, and total operating hours. Quick assessment of voltage quality.
- AVR - intelligent voltage stabilization system.Protection against overvoltage and overload, as well as a function to maintain the output voltage at a constant level.
- Automatic engine shutdown when fuel level is low.
Technical Features
- Voltage: 230V and 400V
- Maximum power: 5.5 kW - single-phase mode, 6.5 kW - three-phase mode..
- Noise level, LpA (7m)/LwA, dB: 71/96
- Engine: displacement - 11 L, displacement - 456 cm³.
- Start type: manual/electric
- Protection class: IP23M
Included accessories
- Portable power plug 2P+E 230V, 32A
- Portable plug 2P+PE 16A 230V
- Open-end wrench 8x10 mm
- 12x14 mm open-end wrench
- 17x14 mm open-end wrench
- 6.0 mm Phillips screwdriver, PH2
Service Support in Ukraine
Total-Energo LLC provides a full range of services for Könner & Söhnen customers in Ukraine: consulting, equipment selection, design, delivery, installation, warranty and post-warranty service.
