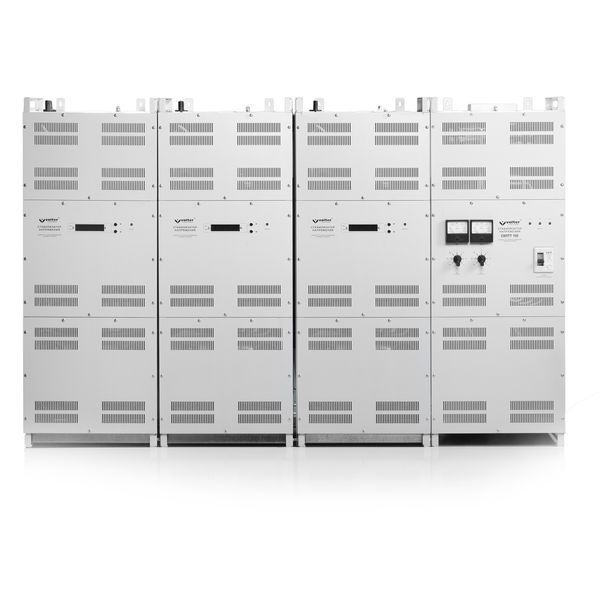

Three-phase triac voltage stabilizer Volter 200 птc (210.0 kW) is a high-tech triac device 200 птc, developed for reliable safety of home and professional electrical equipment from critical surges in the grid. It acts as a reliable barrier against dangerous impulse surges, mains voltage drops, high-frequency noise, and sine wave distortions. Thanks to optimal power resource, this stabilizer is an excellent solution for houses, apartments, and offices where stable and safe operation is critical of sensitive appliances.
The operation of this model is based on the technology of automatic switching of autotransformer windings using high-speed electronic switches (triacs). Adjustment of the output voltage is performed in steps, but extremely fast. This ensures guaranteed protection of the connected equipment without mechanical wear of power components and without background noise during switching.
Technical Specifications Volter 200 птc
- Nominal power — 210.0 kW
- Stabilization type — Triac
- Number of phases — three-phase
- Output voltage regulation accuracy — +1,5 -2,5%
- Nominal output voltage — 220 V
- Stabilization input voltage range — 150.0–275.0 V
- Low cut-off voltage (Umin) — 170 В
- High cut-off voltage (Umax) — 260 В
- Maximum load current — 320.0 A
- Operating temperature range — Operating temperature range from +1°С to 40°С indoors
- Manufacturer warranty — lifetime
Key Benefits of the Model
- Ultra-high accuracy (±+1,5 -2,5%): the device holds output voltage within strict limits of nominal values, providing ideal conditions even for demanding medical or laboratory equipment.
- Climatic design: adaptation to standard temperatures ensures stable operation of the device in standard operating conditions.
- Compatibility with solar and generators: the unit is fully compatible for operation with hybrid solar power stations (handles reverse current) and generator sets.
- Silent operation: due to the use of electronic semiconductor switches, the device runs quietly and eliminates sparking and wear.
- Lifetime warranty: official warranty conditions from the manufacturer confirm impeccable assembly quality and durability of all components.
Safety and Protective Functions
- Critical current overload protection: protective power cut-off upon long-term exceedance of the allowable load power.
- Multi-level thermal protection: constant overheat protection of power switches and autotransformer with activation of forced cooling ventilation.
- Short circuit protection: ultra-fast output de-energization to a short circuit in the connected load to prevent damage to power modules.
- Impulse and lightning surge filtration: effective absorption of high-voltage noise in the mains grid caused by external factors.
Installation and Connection Recommendations
- Wall vertical mounting: the stabilizer body is securely fixed vertically on the wall using mounting plate or anchors.
- Air circulation assurance: leave free space around ventilation openings (from 10 cm) for effective heat dissipation.
- Terminal grid connection: connection to power supply lines is carried out via terminal block. The copper feeder cable cross-section must correspond to nominal load.
- External exposure protection: the device has IP20 protection class, which implies installation in rooms with moderate humidity and dust levels.
Application Area: Where the Device is Used
- Cottages and private houses: the stabilizer nominal power are suitable for protection of all appliances in a large cottage, office, or commercial site.
- Heating equipment: creates a perfect sinusoidal signal, which is necessary for circulation pumps and sensitive control boards.
- Computers and office equipment: prevents data loss and malfunctions of computer systems, servers, and network switches.
- Medical offices: provides the necessary voltage quality for dental units and precise diagnostic tools.
