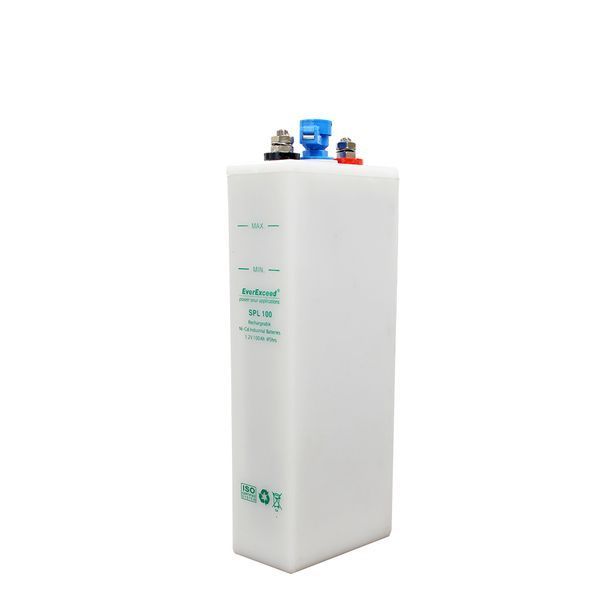

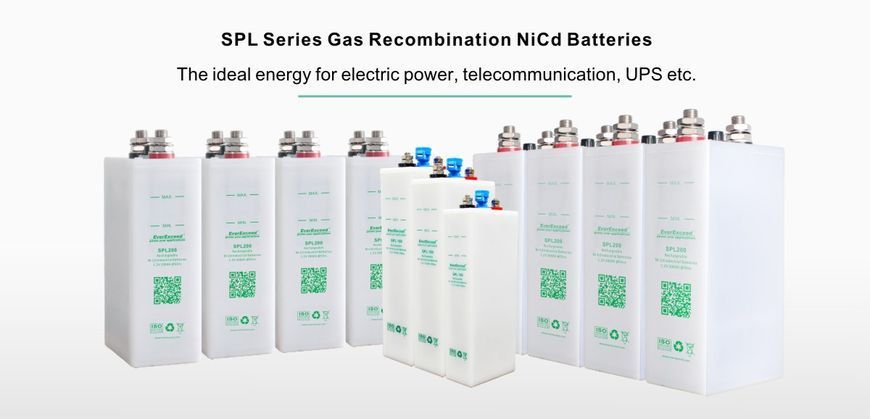

EverExceed SPL800 / KLP800 — is a 1.2V maintenance-free nickel-cadmium battery with gas recombination technology, designed for long-term buffer operation in critical systems. With a capacity of 800 Ah (C5), gas-tight design and Pocket Plate technology, SPL guarantees 20 years of service without water topping up, temperature resistance from -50°C to +70°C and high recombination efficiency up to 95%.
The SPL800 / KLP800 NiCd battery series is optimized for discharges from 2 to 5 hours. If the discharge time is shorter, it is worth considering other NiCd battery series:
- for short discharge ≤ 30-60 minutes: EBM, SEBM, SPM;
- for super-short 20-30 minutes: EBH, SEBH;
- for high-current micro-discharge: XHP;
- for engine starting: XHP Sintered Plate Range Gen Start NiCd Battery.
Key advantages of the SPL/KLP battery
- Completely maintenance-free – no water topping up required
- Gas recombination up to 95% – reduced water consumption
- 20+ years of operation without the risk of “sudden death”
- High resistance to deep discharge, overcharge, reverse
- Safe polypropylene or ABS housing
- Withstands temperatures from –50°C to +70°C
- Compliance with IEC 62259, IEC 60623
Technological features
- Plate type: Pocket Plate
- Nominal voltage: 1.2 V
- Housing: impact-resistant PP or ABS, translucent
- Technology: sealed valve with gas recombination
- Electrolyte: KOH + LiOH, no need to replace
- Charge modes:
- Float: 1.42 V/cell
- Boost: 1.45 V/cell
- Fast: up to 1.55 V/cell, with current limitation
- Charge in constant current: 0.1 C5 A for 16 hours
- Electrolyte: 16 l.
- Weight with electrolyte: 57.5 kg.
- Terminals: 3 x M20
Scenarios use
- Oil and gas industry (onshore/offshore)
- Emergency lighting systems, fire alarm
- Communication systems, telecommunications, transformer substations
- Railway, transport, automation
- Photovoltaics, hybrid solar power plants
- Uninterruptible power supply for servers, process control
Service support in Ukraine
Total-Energo LLC — official distributor and service partner of EverExceed in Ukraine. We provide design, commissioning, monitoring and service for SPL batteries, including the selection of chargers, protection systems and adaptation to industrial facilities.
Communication and monitoring interfaces
- Compatibility with BMV, SmartShunt, VE.Bus BMS
- Temperature, voltage, current control via third-party BMS
- Residual capacity monitoring – optionally via MODBUS / SCADA
- Highly conductive contact terminals (copper/steel)
