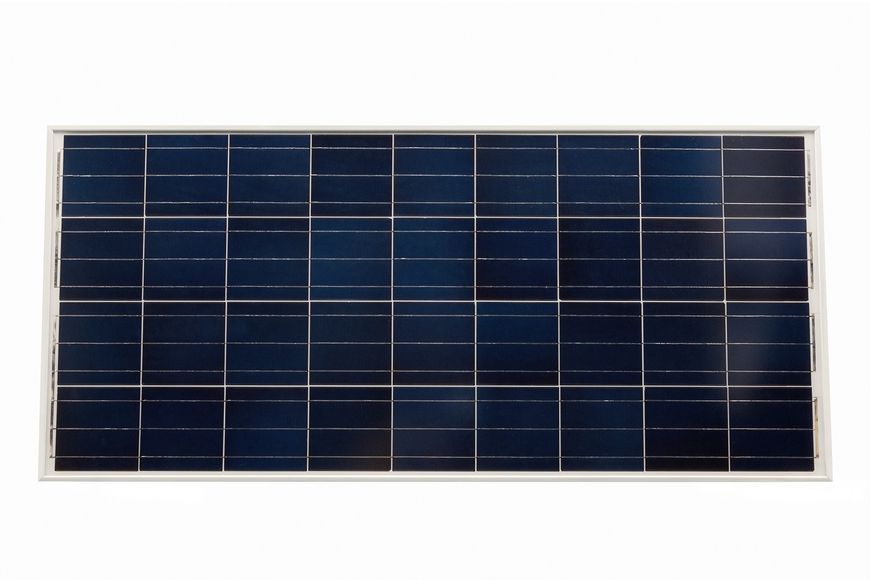

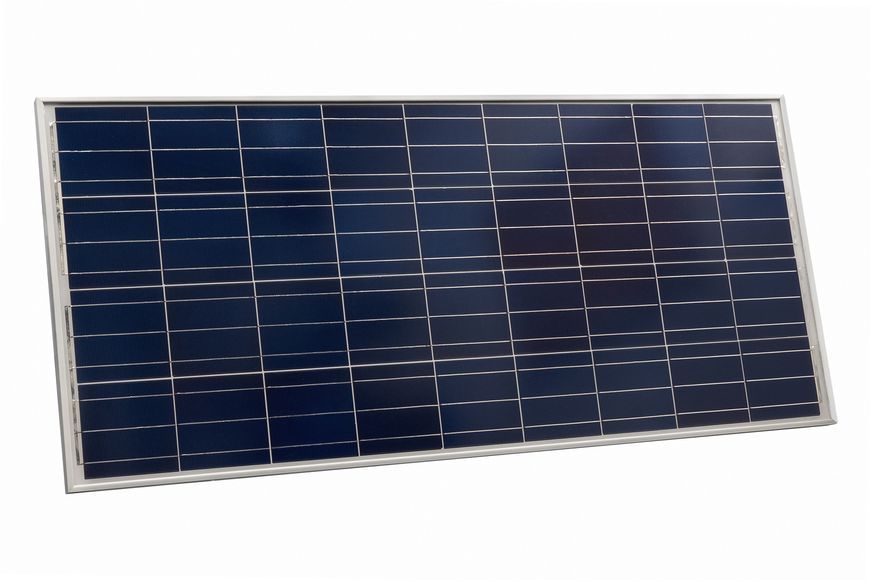

The BlueSolar 90W-12V Poly solar panel from Victron Energy (90 W, 12 V) – is a reliable polycrystalline solar panel for off-grid power systems. It combines high efficiency on cloudy days, protection against moisture, and reliable installation, making it the ideal choice for cottages, campers, boats, or backup power systems. Thanks to its compact dimensions (780 × 668 × 30 mm), this panel integrates easily into any project.
Key advantages of BlueSolar 90W-12V Poly solar panels
- High efficiency even in low light conditions.
- Temperature coefficient -0.45%/°C – stable performance at high temperatures.
- Reliability in every detail – sealed box with a high level of protection.
- Durable aluminum frame – easy installation and resistance to mechanical stress.
- Tempered glass – impact and weather resistance.
- 25-year warranty on power output (80%) and 5-year warranty on materials.
- Maximum power: 90 W
- Voltage: 19.5 V
- Current: 4.61 A
- Weight: 6.1 kg
Technical Features
- Polycrystalline technology – time-tested and stable in operation.
- 36 cells in series connection
- Compatibility with MPPT controllers – maximizes the panel’s potential.
- Safe operation up to 1000 V system voltage
- Reliability in all conditions – operating temperature range: -40°C to +85°C.
- Withstands wind, snow, and hail – loads up to 200 kg/m² and hailstones of 7.5 g at a speed of 23 m/s.
Use Cases
- For campers and RVs – powering the refrigerator, lighting, and charging devices.
- At the cottage or in the field – powering lights, a pump, or charging a battery.
- Small hybrid systems with a battery – from the sun to the battery with subsequent power distribution.
- Boats, motorboats, yachts – stable battery charging even in conditions of reflected light.
- Off-grid security/video surveillance systems – safe and independent power supply.
Compatible Victron Energy MPPT controllers
Recommended for use with MPPT controllers:
- SmartSolar MPPT 75/10
- BlueSolar MPPT 75/10
- or PWM controllers
These controllers allow you to achieve maximum charging efficiency even under variable lighting conditions or cloudy weather.
Service support in Ukraine
Total-Energo LLC – an official partner of Victron Energy in Ukraine, provides professional support for projects involving solar panels, controllers, and batteries. We offer engineering, installation, configuration, and maintenance of equipment throughout Ukraine.
