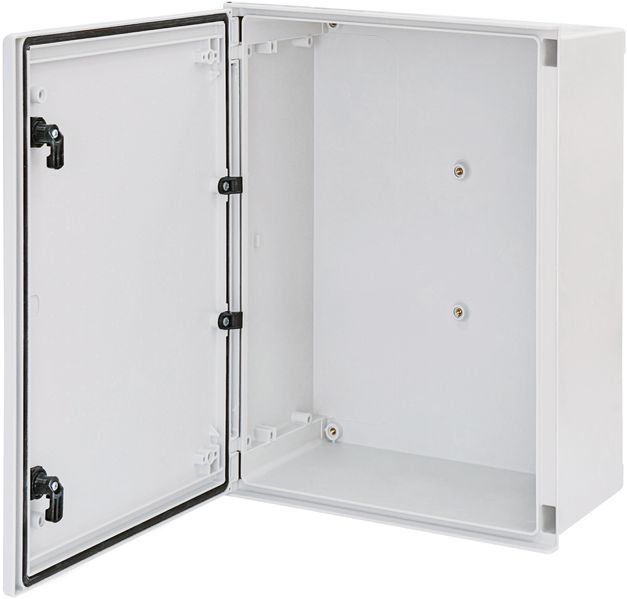

The EPC series cabinets are designed for outdoor installation and use in harsh environments: they are resistant to rain, snow, dust, UV radiation, and chemicals. The enclosure is made of heat-resistant, glass-fiber-reinforced polyester (no metal parts—no corrosion), ensuring long-term operation and dimensional stability under extreme temperature fluctuations. The enclosures are also recommended for PV systems and harsh industrial environments. Service life — at least 30 years.
Key advantages
- Protection rating: IP66 — complete protection against dust and powerful water jets.
- Mechanical strength: IK10 — withstands impacts up to 20 kJ.
- Double insulation (Class II): no grounding required; rated insulation up to 1000 V AC and 1500 V DC.
- Fire resistance: GWFI +960°C; self-extinguishing, halogen-free material.
- Temperature resistance: operation from -30°C to +120°C without deformation.
- Resistance to UV and atmospheric influences (for outdoor installation).
- Modularity: cabinets can be combined into systems using connecting flanges.
- Compliance: IEC 62208; materials comply with RoHS.
Contents
- Cabinet with solid door (polyester, IK10).
- Plastic hinge pins for door mounting.
- Set of wall mounts (x4) for installation in brick walls.
- Standard double-latch lock with key; optional — lock with key.
Technical Specifications
- IP66 / IK10, Insulation Class II.
- Un: 1000 V AC, 1500 V DC.
- Housing/seal material: glass-fiber-reinforced polyester / polyurethane.
- Operating temperature: -30…+120 °C; fire resistance: GWFI +960 °C.
- Standards: IEC 62208; RoHS compliant.
Product range (cabinets with solid doors)
| Type | Code | Height, mm | Width, mm | Depth, mm | Weight, kg |
|---|---|---|---|---|---|
| EPC 30-25-14 | 1102600 | 300 | 250 | 140 | 1.93 |
| EPC 40-30-20 | 1102601 | 400 | 300 | 200 | 3.60 |
| EPC 40-40-20 | 1102602 | 400 | 400 | 200 | 4.35 |
| EPC 50-40-20 | 1102603 | 500 | 400 | 200 | 5.25 |
| EPC 60-40-23 | 1102604 | 600 | 400 | 230 | 7.13 |
| EPC 60-50-23 | 1102605 | 600 | 500 | 230 | 7.93 |
| EPC 80-30-23 | 1102606 | 800 | 300 | 230 | 6.40 |
| EPC 80-60-30 | 1102607 | 800 | 600 | 300 | 12.65 |
Number of locks: 1 (EPC 30-25-14) or 2 (other sizes); additional anti-blow latches: 1–2 depending on size. Dissipation power at 40°C: 36.2–185 W.
Mounting panels (ordered separately)
Polyester (EPC-PMP): thickness 3–4 mm; models EPC-PMP 30-25 … 80-60.
Metal (EPC-MMP): thickness 2 mm; models EPC-MMP 30-25 … 80-60.
Additional interior doors (EPC-ID)
Supplied with a standard double-latch lock, handle, and mounting accessories; designed for the installation of signaling and control elements. Available sizes: from EPC-ID 30-25 to EPC-ID 80-60.
Modular chassis for DIN equipment (EPC-CHM)
Chassis kits include a front panel with cutouts, a frame with DIN rails, and depth-adjustable clamps (39–68 mm). Options for 20–145 modules, compatible with all EPC cabinet sizes.
Mounting hardware and accessories
- Wall-mount kits: EPC-WM (front mounting), EPC-WMR (rear mounting).
- Pole mounts: EPC-PFK-X3/X4/X5/X6 — for various cabinet sizes.
- Connecting flanges: EPC-CF-A/B/C — for grouping cabinets.
- Locks and ventilation: EPC-DL10 (double-latch), EPC-LK (key-operated), EPC-VDS/EPC-VDL (IP54, installed in pairs).
- Opening limiter: EPC-DH-145; brass anchor: EPC-FI (M5×11, 4 pcs.).
Applications and installation tips
- Outdoor installations, power generation, transportation, water supply, agriculture, PV projects.
- For proper heat dissipation, use EPC-VDS/VDL ventilation modules (two per cabinet, diagonally).
- To expand systems, use EPC-CF flanges (A/B/C depending on compatibility).
TOTAL ENERGO LLC supplies EPC polyester enclosures with an official warranty, assists with selecting dimensions, interior doors, chassis, and mounting kits, and provides technical support and fast logistics throughout Ukraine. Contact us for a custom configuration tailored to your project.
