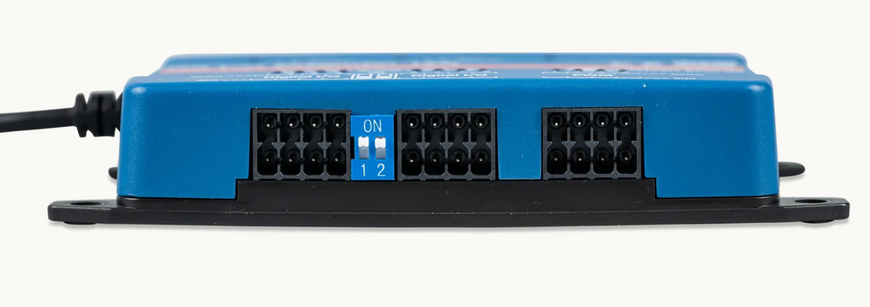

GX-IO Extender 150 — a specialized expansion module designed for connecting additional analog and digital inputs/outputs in Victron Energy energy management systems. The device is suitable for installations where additional sensors or alarms need to be connected, or where relays need to be controlled in remote or complex facilities.
Key Features and Capabilities
- Digital Inputs: 6 isolated inputs designed to read states, pulses, or triggers (e.g., door status, alarms, etc.).
- Analog inputs: 4 inputs for monitoring voltage (0–70 V) or temperature (NTC sensors), ideal for monitoring batteries or ambient temperature.
- Relay outputs: 5 dry contacts, independent and isolated—can be used to control fans, pumps, or alarms.
- Integration: Connection is via the VE.Can port, ensuring full compatibility with Cerbo GX, Ekrano GX, and other Victron products.
- Power supply: DC 8–70 V — the wide input voltage range allows the device to be used in 12/24/48 V systems.
- Housing: Compact plastic housing with DIN-rail mounting capability.
Technical Specifications
- DC Power Supply: 8–70 V DC
- Interface: VE.Can, compatible with GX devices
- Digital inputs: 6 (isolated, up to 70 V, 5 kHz)
- Analog inputs: 4 (NTC or voltage 0–70 V)
- Relay outputs: 5 (dry contacts, max. 30 V, 1 A)
- Enclosure protection: IP20
- Mounting: DIN rail (35 mm)
- Dimensions: 90 × 71 × 58 mm
- Operating temperature: –20°C to +50°C
Typical application scenarios
The GX-IO Extender 150 is designed for complex power systems requiring additional control and monitoring. Application scenarios include:
- Installation in standalone or hybrid systems (including solar power plants)
- Expansion of temperature and voltage monitoring systems for battery banks
- Remote control of external equipment (ventilation, cooling, alarms)
- Integration with external status sensors or alarm contacts
Total-Energo LLC — official support and supply
The company Total-Energo LLC offers a full range of services for the supply, configuration, and technical support of Victron Energy devices, including the GX-IO Extender 150. Our engineers provide:
- Consultations on integrating the module into an existing Victron system
- Professional configuration via Cerbo GX or the VRM portal
- Warranty and post-warranty service
- Turnkey installation and commissioning
Contact us via the website or reach out for a consultation—we’ll help you tackle complex challenges in the energy sector.
