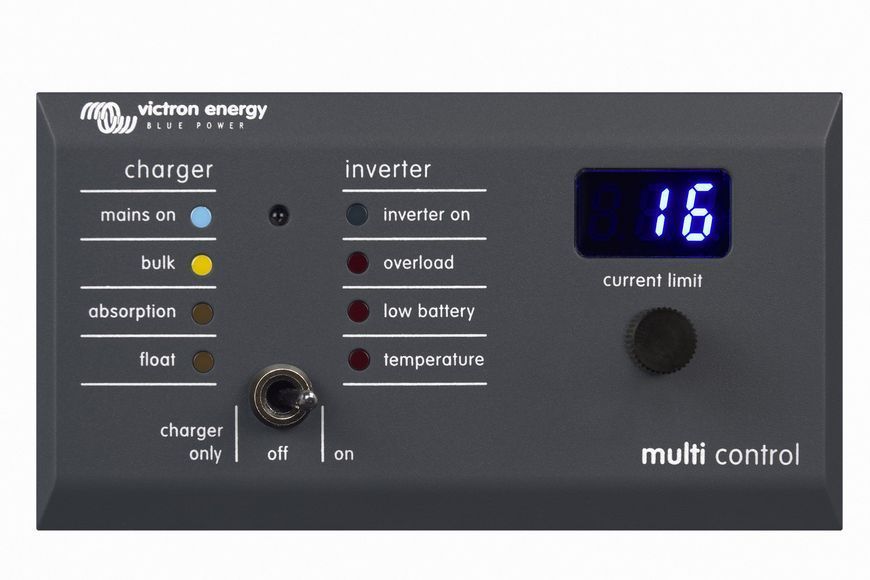

Digital Multi Control 200/200A GX control panel – an updated remote control panel that allows the user to control the inverter and charger with maximum convenience. Thanks to its integration with VE.Bus systems, it is compatible with most Victron Energy devices. A unique feature of this model is the 90° RJ45 angled connector, which is ideal for wall mounting in tight installations.
Key benefits of the Digital Multi Control panel
- Ideal control for VE.Bus systems – supports MultiPlus, Quattro, MultiGrid, EasySolar, MultiPlus-II, Quattro-I.
- PowerControl function – control over power consumption from the grid or generator.
- Adjustable current limit (up to 200A) – flexibility for any power source.
- Compact GX format – easily integrates into a front panel or wall.
- LED system status indicators – clear visual representation of operating mode.
- 90° RJ45 angled connector – convenient for horizontal or tight installations.
- Support for previous generations of VE.Bus systems – backward compatibility.
Technical Features
- Compatible devices: MultiPlus, MultiPlus-II, MultiGrid, Quattro, Quattro-II, EasySolar
- Communication interface: VE.Bus via RJ45 (90° outlet)
- Supply voltage: 8 – 64 V DC (compatible with 12/24/48 V systems)
- Max. controllable current: 200 A (adjustable)
- Dimensions: 65 x 120 x 40 mm
- Mounting: flush-mounted (65x120 mm cutout) or surface-mounted
- Indicators: LED status lights
- Housing material: ABS plastic
Technical support in Ukraine
The official distributor, Total-Energo LLC, offers full support for the Digital Multi Control GX: from assistance with selection to installation and warranty service. Consultations, on-site visits, and integration into complex systems—all available throughout Ukraine.
Application scenarios
- Campers, RVs – intuitive inverter control without the need to open the panel.
- Marine systems – the ideal solution for remote power system control.
- Summer homes, cottages – real-time current regulation when using a generator.
- Industrial facilities – remote monitoring of backup power systems.
- Off-grid systems – quick switching between power modes.
Communication interfaces
- VE.Bus (RJ45) – primary connection to Victron devices.
- PowerControl regulator – convenient rotary encoder for setting the current limit.
- Status indicators – ON, Charger Only, Error, Overload.
