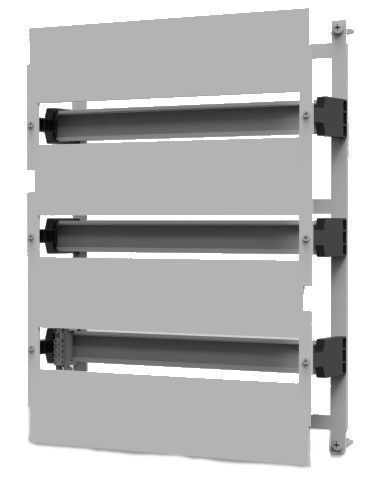

The EPC-CHM series of modular chassis are designed for mounting modular equipment on DIN rails inside EPC IP66 polyester enclosures. They ensure convenient and neat installation of circuit breakers, RCDs, relays, terminal blocks, and other equipment. The chassis kit includes everything needed for quick integration of equipment into the enclosure and meets high safety and reliability requirements.
Thanks to their universal design, EPC-CHM chassis allow for flexible organization of the enclosure’s interior space, maintaining compactness and ensuring easy access to equipment during installation or maintenance.
Key Benefits
- Full compatibility: suitable for all sizes of EPC series cabinets.

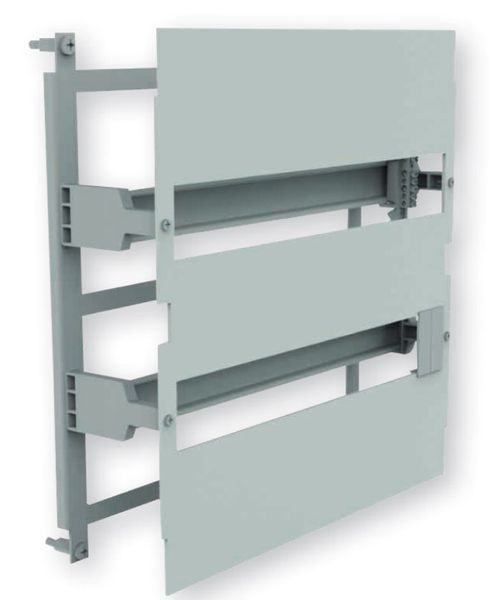

- Components: front panel with cutouts, metal frame with DIN rails, depth-adjustable fasteners.
- Adjustment: the mounting depth of the rails can be adjusted within the range of 39–68 mm.
- Capacity: from 20 to 145 modules depending on the model.
- Reliability: sturdy metal frame withstands heavy-duty use.
- Aesthetics: neat appearance with front panel.
EPC-CHM Product Line
| Type | Code | Cabinet compatibility | Number of modules |
|---|---|---|---|
| EPC-CHM 30-25 | 1102630 | EPC 30-25 | 20 |
| EPC-CHM 40-30 | 1102631 | EPC 40-30 | 36 |
| EPC-CHM 40-40 | 1102632 | EPC 40-40 | 48 |
| EPC-CHM 50-40 | 1102633 | EPC 50-40 | 60 |
| EPC-CHM 60-40 | 1102634 | EPC 60-40 | 72 |
| EPC-CHM 60-50 | 1102635 | EPC 60-50 | 84 |
| EPC-CHM 80-30 | 1102636 | EPC 80-30 | 96 |
| EPC-CHM 80-60 | 1102637 | EPC 80-60 | 145 |
Applications
- Distribution panels for residential and industrial networks.
- Configuration of EPC cabinets for automation and power engineering.
- Mounting of protective and switching equipment on DIN rails.
- Creation of modular systems with a large number of devices.
TOTAL ENERGO LLC supplies a full range of EPC-CHM modular chassis, helps select the optimal option for the required EPC cabinet size, and provides technical support and fast delivery throughout Ukraine.
