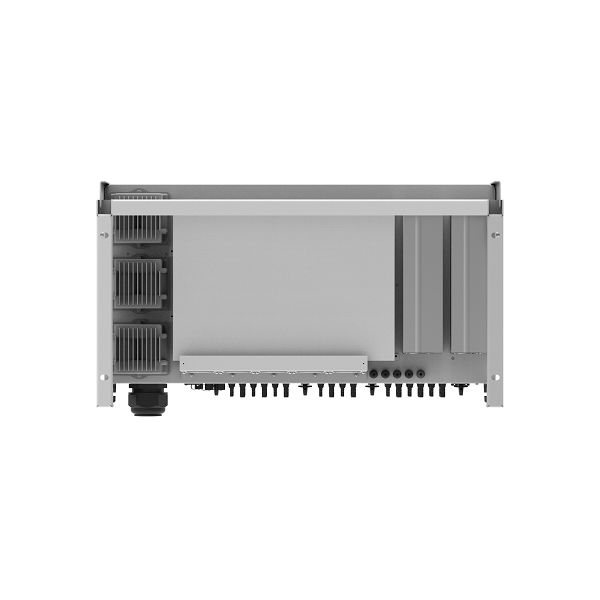

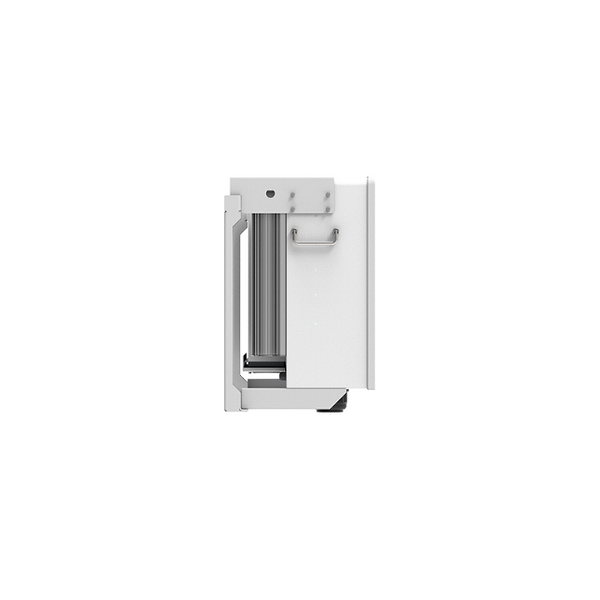

Deye SUN-125K-G — a high-efficiency three-phase string inverter for commercial and industrial solar power plants. It features 8 MPP trackers and a maximum efficiency of 98.8%, and supports Zero Export and VSG (Virtual Generator) functions. This inverter is ideal for facilities requiring reliable operation with minimal energy loss and flexibility in string configuration.
The device is equipped with a full set of protections and intelligent monitoring (optionally via GPRS/Wi-Fi/Bluetooth/4G/LAN), has an IP65 protection rating, and features smart air cooling. A wide MPPT input voltage range of 200–1000 V and operation in a temperature range of –25…+60 °C ensure high efficiency even under extreme conditions.
Key Benefits
- 8 MPP trackers to optimize power generation with different panel orientations.
- Maximum efficiency 98.8%, European standard – 98.2%.
- Zero Export and VSG — support for operation in microgrids and Smart Grids.
- Type II SPD DC/AC — surge protection on all channels.
- Anti-PID (optional) — protection of panels against degradation.
- Full DC/AC monitoring, detection of ground faults and insulation faults.
- IP65, low noise level (≤ 65 dB), operation up to 4,000 m above sea level.
- Compact dimensions: 1,006 × 516 × 325.5 mm, weight ≈ 103 kg.
Technical Specifications
- Maximum PV power: ≈ 187.5 kW
- Maximum DC input voltage: 1100 V
- Start-up / MPPT range: 600 V / 200–1000 V
- Number of MPPT channels / strings: 8 / 4 × 8
- Rated AC power: 125 kW
- Max. total AC power: 135 kVA
- Output voltage: 3L/N/PE 220/380 or 230/400 V (0.85–1.1 Un)
- Max. output current: 189.4 / 181.2 A
- Efficiency: max. 98.8% / Euro 98.2% / MPPT > 99%
- Cooling: forced air
- Type: non-isolated inverter
- Protection rating: IP65
- Humidity: 0–100%
- Weight: ≈ 103 kg
- Interfaces: RS485/RS232 | opt. GPRS/Wi-Fi/Bluetooth/4G/LAN
Features
The Deye SUN-125K-G inverter combines high power density with reliability. Thanks to 8 MPP trackers, it allows for flexible connection of modules with different orientations, and the optional Smart Monitoring feature provides comprehensive analytics via the Deye Cloud. Intelligent cooling ensures quiet operation and the longevity of the electronics in dusty and sun-heated environments.
Applications
- Large commercial and industrial solar power plants (rooftops, fields, carports);
- Microgrids with export curtailment and Smart Grid integration;
- Systems prioritizing self-consumption (Self-Use).
Total Energo LLC — Deye distributor in Ukraine. We will select the optimal configuration for your facility, set up Zero Export, VSG, and the monitoring system, and provide warranty and service support.
