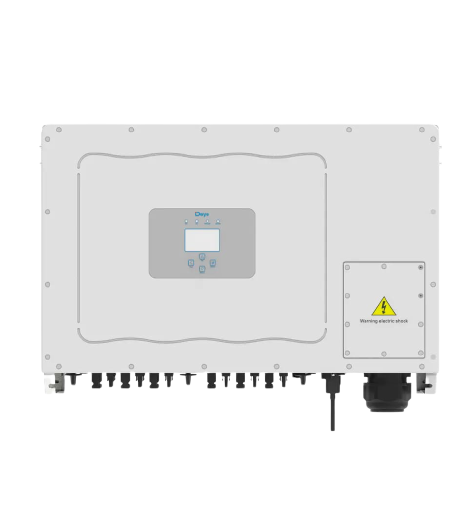

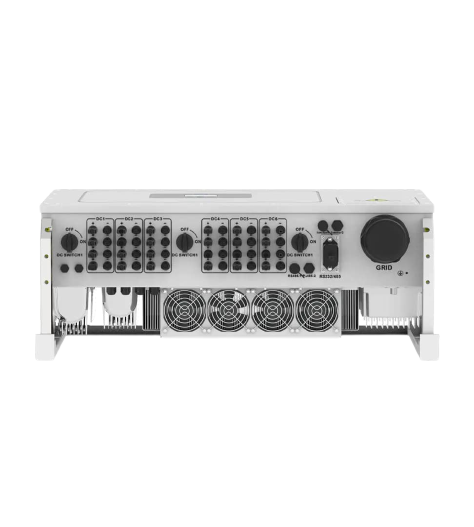

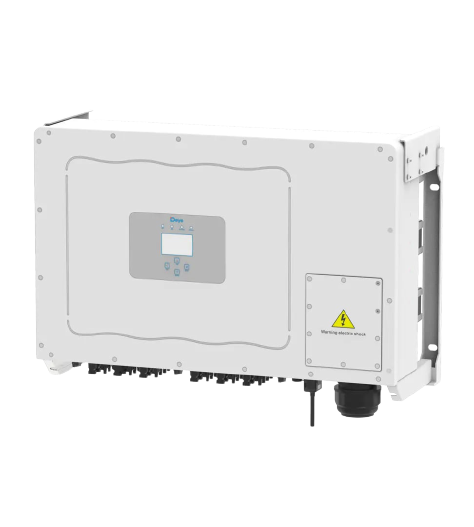

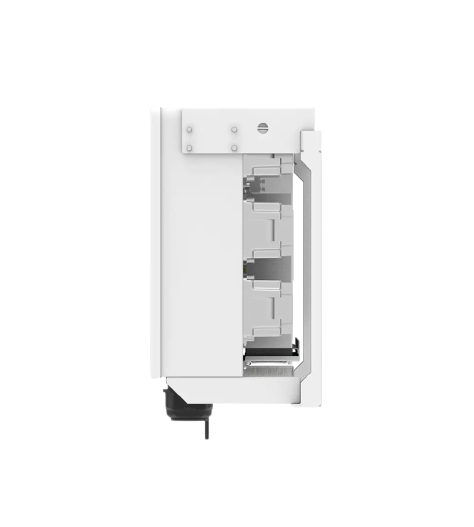

The SUN-100K-G03 grid-tied inverter from Deye is a powerful industrial solution for large solar power plants, combining state-of-the-art technologies for maximum performance and reliability. The device features 6 MPPT trackers, allowing it to efficiently manage multiple arrays of solar panels with different orientations simultaneously. The inverter’s maximum efficiency reaches 98.8%, ensuring minimal energy conversion losses. The input voltage range is 200–1000 V, allowing for flexible and efficient connection schemes.
The inverter is equipped with a three-phase output with a rated voltage of 400 V and a frequency of 50/60 Hz, allowing for stable operation in unstable grid conditions. Device safety is ensured by comprehensive built-in protections: against overvoltage, short circuits, thermal protection, insulation monitoring, residual current, and other potentially harmful phenomena. The cooling system consists of a smart fan unit with a temperature sensor, and the IP65-rated enclosure allows for installation both indoors and outdoors.
For convenient monitoring and control, the inverter is equipped with an LCD display for local parameter viewing and RS485, RS232, WiFi, and LAN interfaces for integration with cloud platforms and SCADA systems. It complies with modern electrical safety regulations and standards, making the inverter suitable for commercial and industrial projects, including green tariffs and government funding.
Technical Specifications
- Maximum DC input power: 150 kW
- Maximum input voltage: 1000 V
- Start-up voltage: 250 V
- MPPT range: 200–850 V
- Maximum DC input current: 40+40+40+40+40+40 A
- Number of MPPT trackers: 6
- Number of strings per MPPT tracker: 4+4+4+4+4+4
- Rated AC output power: 100 kW
- Maximum AC output power: 110 kW
- Rated AC output current: 151.5 / 144.9 A
- Maximum AC output current: 166.7 / 159.4 A
- Output voltage: 220/380 V, 230/400 V (3L/N/PE)
- Mains frequency: 50/60 Hz (optional)
- Protections: reverse polarity, overvoltage, short circuit, thermal protection, insulation monitoring, residual current, islanding protection
- Interfaces: RS485, RS232, WiFi, LAN
- Operating temperature range: -25°C to +60°C (with derating at temperatures above +45°C)
- Protection rating: IP65
- Weight: 81 kg
- Dimensions: 826×516×313 mm
Features
- 6 independent MPPT trackers for maximum energy harvesting
- Support for zero export and VSG function for grid stabilization
- Advanced system protection and monitoring
- Remote control and software updates
- Suitable for large industrial and commercial solar installations
