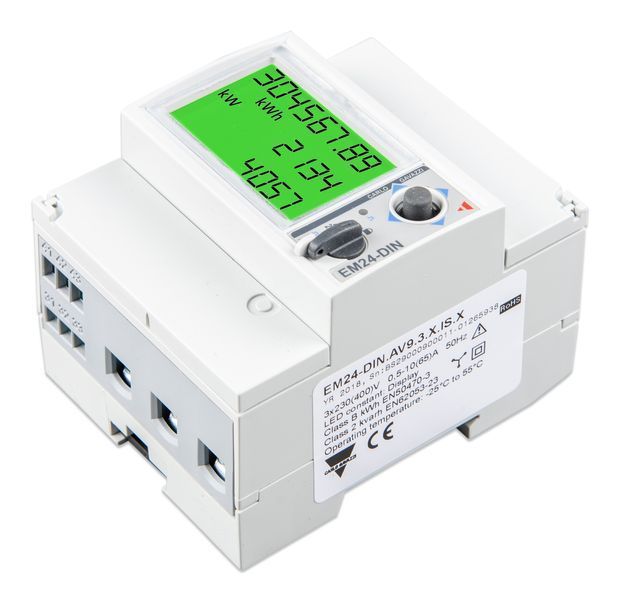

EM24 Ethernet – REL200200100 — is a three-phase electricity meter that measures AC consumption or generation with maximum accuracy. Designed for integration into Victron Energy systems, the meter connects to Cerbo GX, Ekrano GX, and Venus GX devices via Ethernet (Modbus-TCP). It is used in ESS systems to monitor household consumption, solar station generation, or measure power on a sub-network.
Key benefits of the EM24 Ethernet energy meter
- Measures energy in 3-phase networks up to 65 A per phase
- Operates via Ethernet (Modbus-TCP) — stable data transmission
- Ideal for homes, businesses, and solar power stations
- Supports measurement of generation, consumption, and grid export
- Enables the creation of a visual energy flow diagram in the Victron system
- Easy to configure and set up via the display menu
- Fully compatible with GX devices (Cerbo GX, Ekrano GX, etc.)
Technical Specifications
- Part Number: REL200200100
- Power supply: 3-phase / 4-wire (L1, L2, L3, N)
- Max. current: 65 A / phase
- Communication type: Ethernet (Modbus-TCP)
- Device power supply: 230 V AC
- Mounting: DIN rail, standard module
- Measures:
- Power (W)
- Current (A)
- Voltage (V)
- Frequency (Hz)
- Reactive and total power
- Total energy consumed/generated (kWh)

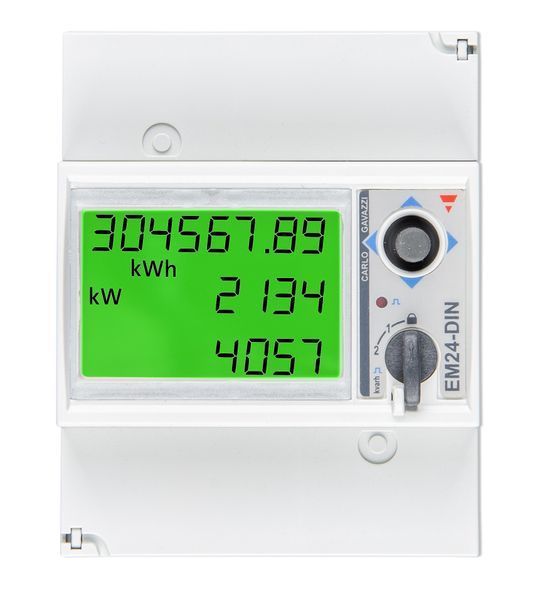

- Display: LCD with button navigation
- Connection to GX: via Ethernet port
Use Cases
- Measuring household consumption for ESS systems
- Measuring solar generation with a grid-connected inverter
- Commercial use in high-load 3-phase systems
- Displaying energy flow in the VRM Portal
- Configuring grid export limitation (Zero Feed-in)
- Monitoring the generator or the utility grid
Communication and Monitoring Interfaces
- Ethernet (Modbus-TCP) – primary communication channel with GX devices
- LCD display – view all parameters without additional devices
- Cerbo GX, Ekrano GX, Venus GX – automatic detection and integration
- VRM Portal – full data visualization, consumption/generation history
