ESC-QBLOK terminals are designed for the distribution of neutral (N) and grounding (PE) conductors in low-voltage cabinets. They provide convenient and safe connection thanks to their compact design and DIN-rail mounting.
The terminals are made of flame-retardant polyamide (UL94 V-0) and feature insulation that complies with standard requirements. Available in 7- and 12-hole versions to meet various electrical installation needs.
Key Benefits
- Versatility: versions for N and PE circuits.
- Easy installation: mounting on a TH35 DIN rail or PR/3 profile.
- Compact design: 7- and 12-hole versions available.
- Reliability: made of durable, flame-retardant polyamide.
- Visual identification: available in blue (N) and green (PE) colors.
Model options
- ESC-QBLOK7001: N, 7 × 10/16 in², 63 A
- ESC-QBLOK7002: PE, 7 × 10/16 in², 63 A
- ESC-QBLOK1201: N, 12 × 10/16 in², 63 A

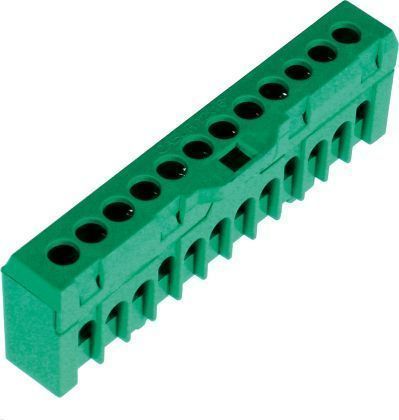

- ESC-QBLOK1202: PE, 12 × 10/16 mm², 63 A
Technical Specifications
- Rated current: 63 A
- Rated voltage: 500 V
- Conductor cross-section: stranded 1.5–10 mm², solid 1.5–16 mm²
- Protection rating: IP20
- Housing material: polyamide UL94 V-0
- Mounting: PR/3 profile or TN35 DIN rail
- Compliance with standards: EN 60715
Applications
- Distribution of neutral and grounding conductors in switchboards.
- Installation in industrial and commercial power supply systems.
- Organization of conductor connections in low-voltage cabinets.
