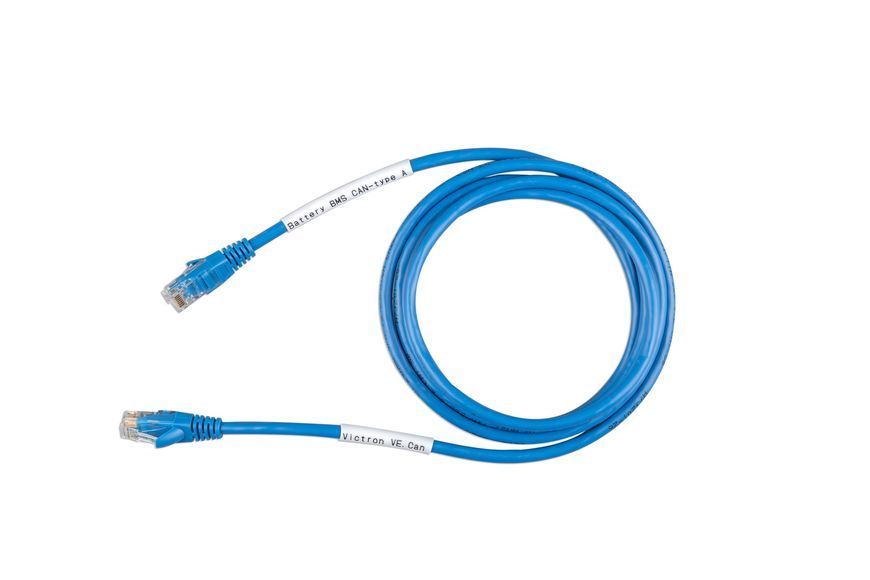

The Victron VE.Can to CAN-bus BMS Type A Cable is a specialized cable that allows third-party batteries (such as BYD, Pylontech, LG Chem, etc.) with a CAN bus to be integrated into Victron Energy systems. It is used for data exchange between the battery and Victron devices via the VE.Can interface. This ensures precise charge/discharge synchronization, enhanced safety, automatic parameter configuration, and optimization of the entire system’s operation.
Key benefits of the VE.Can to CAN-bus BMS Type A Cable
- Compatibility with popular lithium-ion batteries (BYD, Pylontech, LG Chem)
- Enables data exchange between the battery and the Victron inverter/charger
- Automatic configuration of system parameters (voltage, current, temperature)
- Enhances LiFePO₄ battery safety through full integration
- Plug & Play cable – no soldering or reconfiguration required
- Built-in CAN terminator, removable if needed
Technical Specifications
- Part Number: ASS030710018
- Type: Type A (for compatible batteries – see below)
- Length: 1.8 meters
- Interface A: RJ45 (VE.Can)
- Interface B: DB9 (Battery CAN-BMS port)
- Built-in terminator resistor: Yes (can be removed if not needed)
- Compatible products:
- Victron MultiPlus, Quattro, EasySolar, Cerbo GX, Venus GX
- BYD B-Box, LG Chem Resu, Pylontech, and other batteries (Type A)
Use Cases
- Integration of BYD Battery-Box with Victron Cerbo GX and MultiPlus
- Combining Pylontech systems with MultiPlus II inverters
- Building an ESS with lithium batteries featuring BMS data exchange
- Hybrid home systems with full LiFePO₄ support without manual configuration
- Industrial or office backup systems based on GX + CAN batteries
Compatible batteries (Type A)
- BYD B-Box LV
- Pylontech US2000 / US3000 / UP5000
- LG Chem RESU (select models)
- BMZ ESS 7.0, 9.0, 12.0
- Others, according to Victron's official compatibility list
