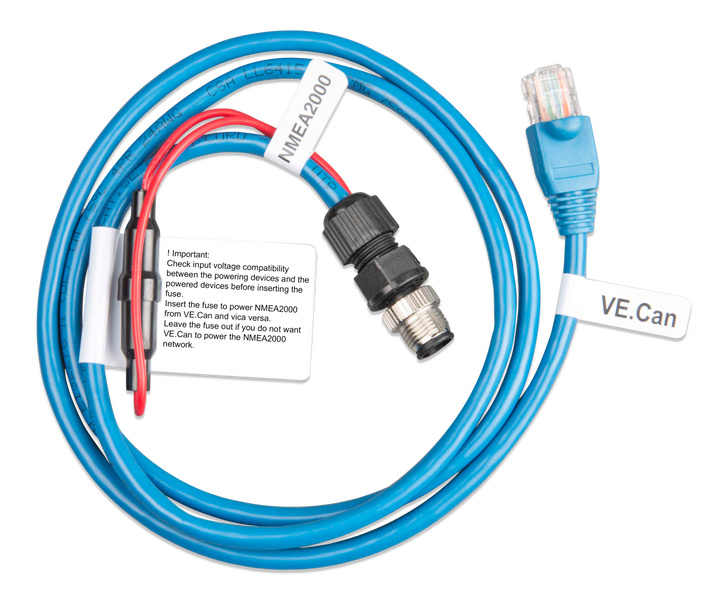

VE.Can to NMEA2000 Micro-C male — is a specialized adapter cable that allows you to connect Victron Energy devices with a VE.Can interface to a marine NMEA 2000 network. This connection enables the display of data on charge, voltage, current, battery SOC, inverter status, and MPPT on multimedia displays from Raymarine, Garmin, Simrad, B&G, and others.
Key benefits of the VE.Can to NMEA2000 Micro-C male cable
-
Direct connection of Victron VE.Can devices to the NMEA 2000 network
-
Micro-C male connector – the standard in marine NMEA 2000 networks
- Supports data display on MFD screens (Garmin, Raymarine, Simrad)
- Requires no external power or configuration
- Fully Plug & Play with Victron devices and modern marine MFDs
- Ideal for boats, yachts, catamarans, and fishing boats
Technical Specifications
- Part Number: ASS030520200
- Connection Type:
- On one side: VE.Can (RJ45)
- On the other side: NMEA 2000 Micro-C male
- Purpose: adapter between VE.Can (Victron) and NMEA 2000
- Compatibility:
- Victron Energy VE.Can devices
- MFD displays (Raymarine, Garmin, Simrad, B&G, etc.)
- Compatibility protocol: support for NMEA 2000 standard PGNs
- Length: approximately 1 m
- Power supply: not required (passive cable)
Use Cases
- Integration of Victron with marine display systems
- Display battery and PV data on Garmin/Raymarine/Simrad screens
- Monitor power status from the MFD without additional devices
- Applications on yachts, sailboats, motorboats, and catamarans
- Any marine NMEA 2000 systems requiring Victron data
Compatible Victron Energy products
- SmartSolar MPPT VE.Can
- Lynx Smart BMS / Shunt VE.Can
- MultiPlus, Quattro with VE.Bus via Cerbo GX
- GX devices: Cerbo GX, Venus GX, Color Control GX
- Battery Monitor BMV (via VE.Can)
Note: Full functionality is achieved when connected via a GX device.
