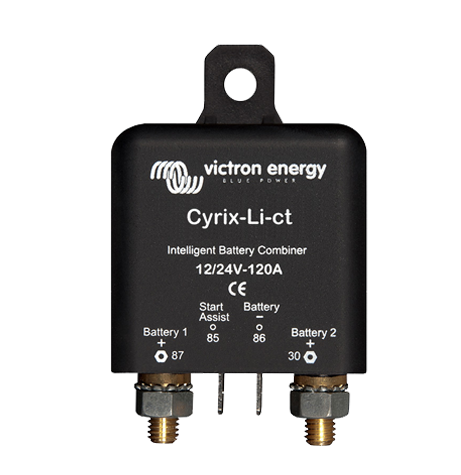

Victron Cyrix-ct 12/24V-120A — is an intelligent automatic relay designed to connect two or more batteries during charging. When the voltage on one of them reaches a set threshold, the device automatically connects the batteries in parallel, allowing the charge to be transferred to all batteries. Cyrix-ct is an ideal solution for transport, marine, camper and autonomous power systems.
This model supports 12 V and 24 V systems (automatic detection), withstands continuous current up to 120 amps and does not require additional settings. Intelligent logic reduces the risk of false start-up during voltage fluctuations and allows safe and efficient charging of multiple batteries.
Purpose and benefits:
- Automatic connection of batteries during charging
- Works with any power sources: generator, solar station, charger
- Two-way voltage detection – analysis of both batteries
- Start Assist function – manual connection when starting the engine
- Starting battery protection – when the voltage drops, automatic disconnection occurs
Technical specifications:
- System voltage: 12/24 V (automatic recognition)
- Continuous current: 120 A
- Switch-on threshold: 13.4 V / 26.8 V (±0.2 V)
- Switch-off threshold: 13.2 V / 26.4 V (±0.2 V)
- Switch-on delay: up to 10 seconds
- Own consumption: 4 mA (off), 12 mA (on)
- Temperature range: -40...+60 °C
- Dimensions: 46 × 46 × 80 mm
- Protection degree: IP54
Usage scenarios:
- Automatic connection of starter and service batteries
- Charging two or three batteries simultaneously (via several Cyrix-ct)
- Marine vessels, campers, emergency power
