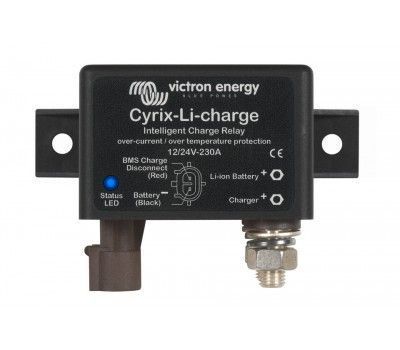

Victron Cyrix-Li-Charge 12/24V-230A (CYR010230430) — is an automatic relay for charging lithium batteries of the LiFePO₄ Smart series in systems with VE.Bus BMS. It is used to connect a charger or generator to the battery only when the battery condition is safe for charging.
This device is ideal for charging one or multiple parallel-connected batteries in 12V or 24V systems. It is controlled by the VE.Bus BMS via the Charge Disconnect digital output, automatically opening or closing the charging line.
Key features of Cyrix-Li-Charge:
- Automatic connection of the charger at a safe battery voltage level and permission from the BMS
- Automatic disconnection in case of overvoltage, overheating or undercooling of the battery
- Delay on — 3 seconds to prevent interference
- Check after charging function — Cyrix periodically opens to check for charging current
Technical specifications:
- Nominal system voltage: 12/24 V (automatic detection)
- Maximum continuous current: 230 A
- Control: digital output Charge Disconnect from VE.Bus BMS
- Current consumption in off state: < 4 mA
- Protection: IP54
Principle of operation:
- Cyrix connects the charging source to the battery when:
- BMS Charge Disconnect output is active (high level)
- at the charger input there is ≥13.0 V (or 26.0 V)
- there is at least 2 V on the battery
- Disconnection occurs instantaneously upon a floating signal (e.g. overvoltage or overheating)
- Cyrix rechecks the current after 1 hour and turns on again if necessary
Supported scenarios:
- Charging one or more Victron LiFePO₄ batteries
- Automatic charge control from generator, inverter, solar or mains charger
- Compatible with VE.Bus BMS, Cerbo GX, Smart Lithium Battery
Cyrix-Li-load advantages:
-
Reliable operation in high current systems
-
Direct integration with VE.Bus BMS for automatic protection
-
Protection of batteries from critical discharge without user intervention
