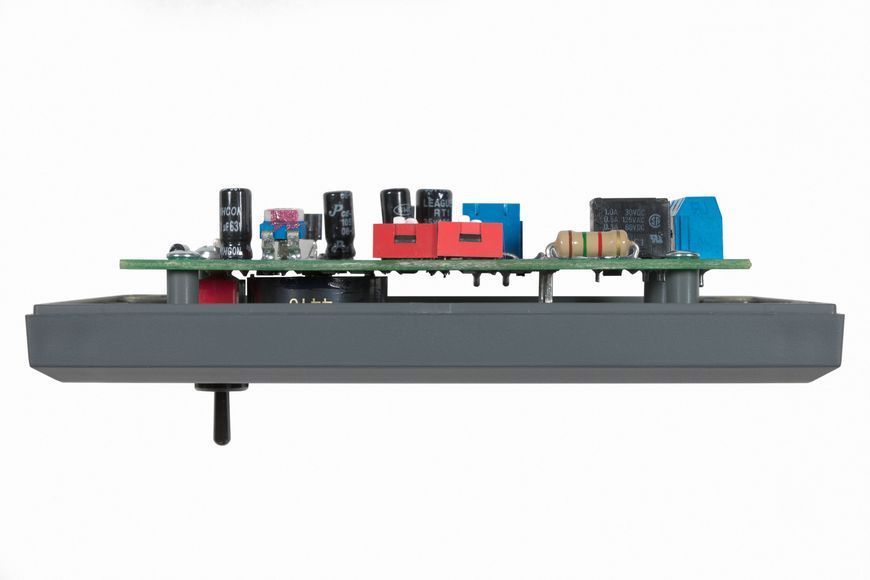

Battery Alarm GX — is a compact battery voltage monitoring module that allows you to set alarm thresholds for the lower and upper voltage limits. If the battery voltage exceeds the set limits, the module activates an audible alarm and an LED indicator. The optimal solution for simple battery monitoring in marine, off-grid, mobile, and backup systems.
Key Benefits of the Battery Alarm GX
- Real-time battery voltage monitoring
- Audible alarm and LED indication upon alarm detection
- Adjustable alarm thresholds (lower and upper)
- 2 relay outputs for external alarms or system logic
- Easy connection to 12/24/48 V DC systems
- Compact form factor — easily installed in a cabinet or panel
Key technical specifications
- Part number: BPA000100010R
- Supply voltage range: 6.5 – 70 V DC
- Current consumption: 0.6 mA during normal operation

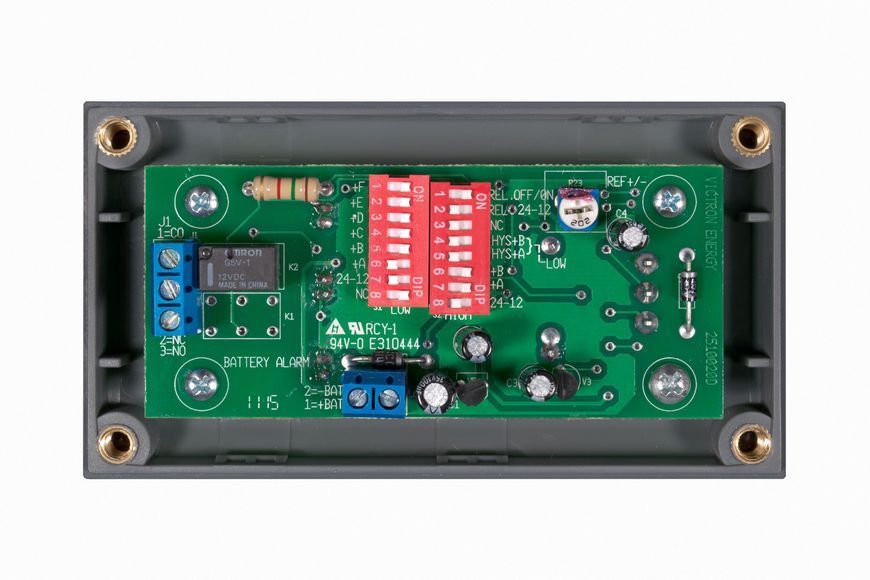

- Alarm thresholds: manually adjustable (via potentiometers)
- Relay outputs: 2 × dry contacts (NO/NC)
- Max. relay load: 1 A at 70 V DC

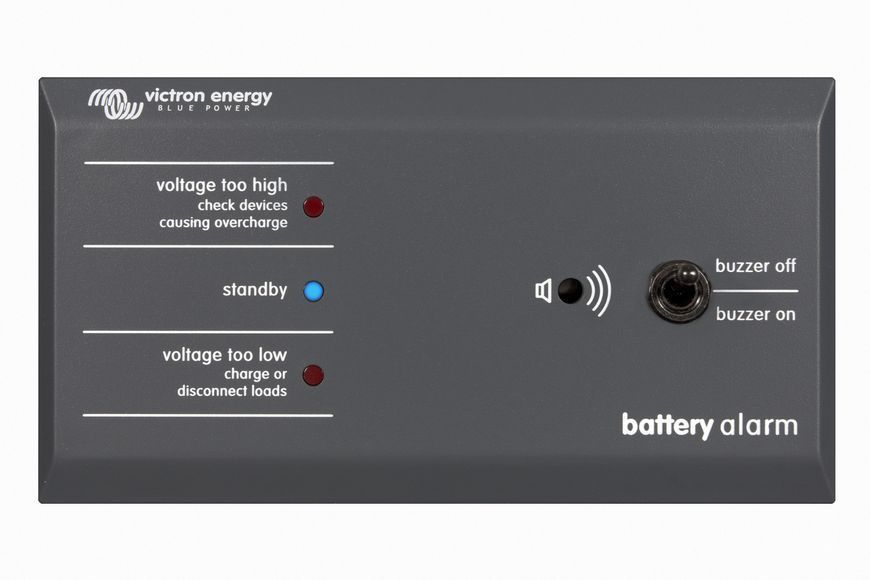

- Indicator: LED + audible alarm
- Mounting: panel (flush-mounted)
- Dimensions: 65 × 120 mm
- Temperature range: –20°C … +50°C
Application scenarios
- Yachts and boats — service battery voltage monitoring
- Home energy systems — deep discharge warning
- RV and mobile solutions — critical discharge alarm
- Industrial battery cabinets — basic battery protection without controllers
- Uninterruptible power supplies — battery level monitoring without VRM
Interfaces and connections
- Connection to a DC bus or directly to the battery
- Ports for connecting two relay outputs
- Alarm threshold parameters are set mechanically (on the housing)
