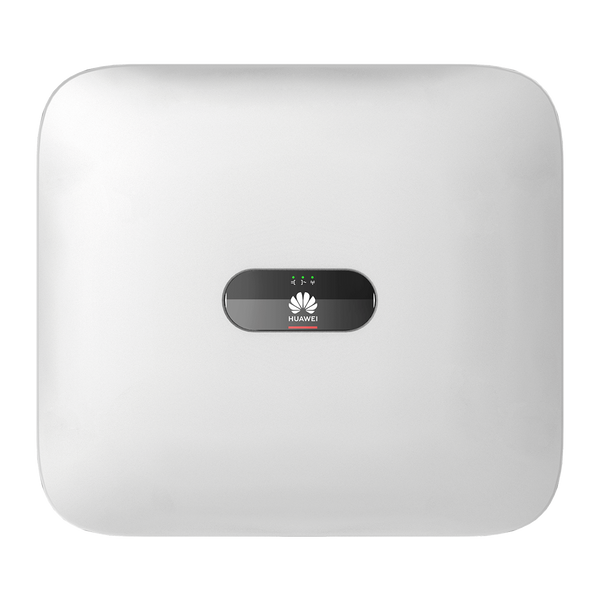

Huawei SUN2000-8KTL-M1 — an 8 kW three-phase hybrid inverter of the new generation from Huawei, combining high energy efficiency, intelligent control, and industrial-grade safety. Equipped with two MPPT trackers, an AI arc fault protection (AFCI) system, support for Huawei Smart ESS batteries, and backup power capability. Ideal for private homes, small businesses, and commercial solar power plants.
- Hybrid — PV + Battery + Grid
- Maximum efficiency 98.6%
- AI Arc Fault Circuit Interrupter (AFCI)
- Two independent MPPT
- IP65 • Natural cooling
Key benefits of the Huawei SUN2000-8KTL-M1
- High efficiency: maximum efficiency 98.6%, European standard – 98.2%.
- Two independent MPPT (2 inputs each) for operation with different panel orientations or tilt angles.
- AI Arc Fault Protection (AFCI): an AI-based system detects and eliminates potentially dangerous sparking short circuits.
- Extended MPPT range: 200–980 V, ensuring stable operation even in low light conditions.
- Smart ESS Battery Support: integration with Huawei LUNA2000 (5–30 kWh) via high-voltage connection.
- Backup mode: automatic power supply to critical loads in the event of a grid outage via the Backup Box-B1.
- Intelligent monitoring: built-in WLAN, RS485, Ethernet and 4G support via Smart Dongle.
- Type II protection (SPD) on the DC and AC sides, residual current monitoring, anti-islanding protection.
- Compact and quiet: natural cooling, fanless design, easy installation.
- Compatibility with optimizers: DC-MBUS SUN2000-450W-P — up to +30% energy gain.
- High level of safety: insulation, temperature, overvoltage, overload, and short-circuit protection.
- Smart Home readiness: integration with Huawei FusionSolar for automated energy management.
Technical Specifications
- Rated power (AC): 8,000 W
- Maximum active power: 8,800 W
- Maximum PV power: up to 12,000 W
- MPPT: 2 units / 4 inputs (2 per tracker)
- DC voltage range: 200–980 V (rated 600 V)
- Max. input voltage: 1,100 V
- Current per MPPT: 13 A (max. 19.5 A short circuit)
- Efficiency: 98.6% max. / 98.2% European
- Battery support: Huawei LUNA2000 (5–30 kWh)
- Output voltage: 3 × 230/400 V (three-phase)
- Max. output current: 13.4 A
- Mains frequency: 50/60 Hz
- Power factor: 0.8 inductive … 0.8 capacitive
- Protection rating: IP65
- Cooling: natural convection
- Temperature range: -25 … +60 °C (derating above 45 °C)
- Weight: 17 kg
- Dimensions: 525 × 470 × 146 mm
- Interfaces: WLAN, RS485, Ethernet / 4G via Smart Dongle
Who it’s for
The Huawei SUN2000-8KTL-M1 is designed for those who want to maximize self-consumption and ensure a power reserve. It is ideal for:
- Private homes with large solar power systems (6–12 kW).
- Small businesses—offices, warehouses, stores, agricultural facilities.
- Facilities requiring battery-based load backup.
- Hybrid systems with nighttime charging and daytime discharging.
Why Total Energo
Total Energo — a Huawei Solar partner in Ukraine offering comprehensive solutions for off-grid facilities. We provide equipment selection, installation, configuration of the FusionSolar App, warranty and service support, as well as full integration with energy storage systems.
