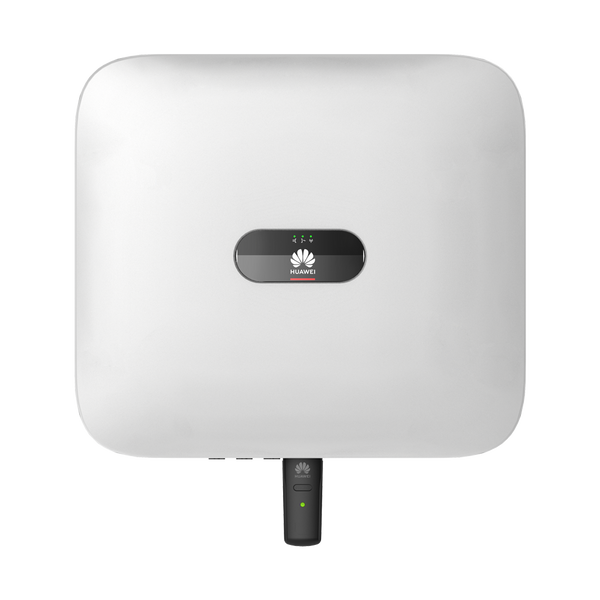

Huawei SUN2000-10KTL-M1 — 10 kW three-phase hybrid inverterfor private homes and small businesses: 2 independent MPPT trackers, support for Huawei LUNA high-voltage batteries, AI arc fault protection (AFCI), integrated Wi-Fi, and backup mode operation via Backup Box.
- Hybrid: PV + Battery + Grid
- Efficiency up to 98.6%
- 2 MPPT / 4 DC inputs
- IP65 • Natural cooling
- LUNA 5–30 kWh
Key Benefits
- High Efficiency: maximum efficiency 98.6%, European standard – 98.1% – more usable energy at the output.
- Hybrid architecture: simultaneous operation with the grid, PV, and HV batteries via a built-in interface; charge/discharge up to 10 kW.
- Flexible array design: 2 MPPT with a wide range of 140–980 V and a start voltage of 200 V — stable startup and operation under low insolation.
- Industrial-grade safety: AFCI, residual current monitoring, Type II SPD on the DC/AC side, anti-islanding, built-in PID recovery.
- Backup power: via Smart Backup Box-B1 for critical circuits (offline output up to 3.3 kVA).
- Monitoring and communication: integrated WLAN + FusionSolar App, RS485; Ethernet/4G — via Smart Dongle.
- Compatibility with optimizers: SUN2000-450W-P (DC-MBUS) — increased yield on complex roofs.
Technical specifications
- Phase / grid: three-phase, 220/380 or 230/400 V; 50/60 Hz.
- Rated power (on-grid): 10,000 W; max. total power: 11,000 VA; max. current: 16.9 A.
- PV (DC): max. voltage 1,100 V; operating range 140–980 V; nominal 600 V; 2 MPPT channels (1 input each); IMPPT 11 A; Isc 15 A.
- Recommended PV array power: up to 15,000 W (DC).
- Battery (HV): operating voltage 600–980 V; max. current 16 A; charge/discharge: up to 10,000 W.
- Backup (off-grid via B1): output up to 3.3 kVA; 220/230 V; Imax 15 A.
- Cooling / protection: natural convection; IP65; nighttime power consumption < 5.5 W.
- Communications: WLAN (built-in), RS485; Ethernet/4G — optional Smart Dongle.
- Dimensions / weight: 525 × 470 × 146.5 mm / 17 kg.
Typical application scenarios
- Three-phase residential solar power plants with high self-consumption and nighttime reserve.
- Small commercial facilities: offices, warehouses, stores, farms (scalable up to 15 kWDC).
- Hybrid systems with LUNA 5–30 kW·h (peak shaving, tariff strategies).
- Roof systems with complex geometry — with 450W-P optimizers.
