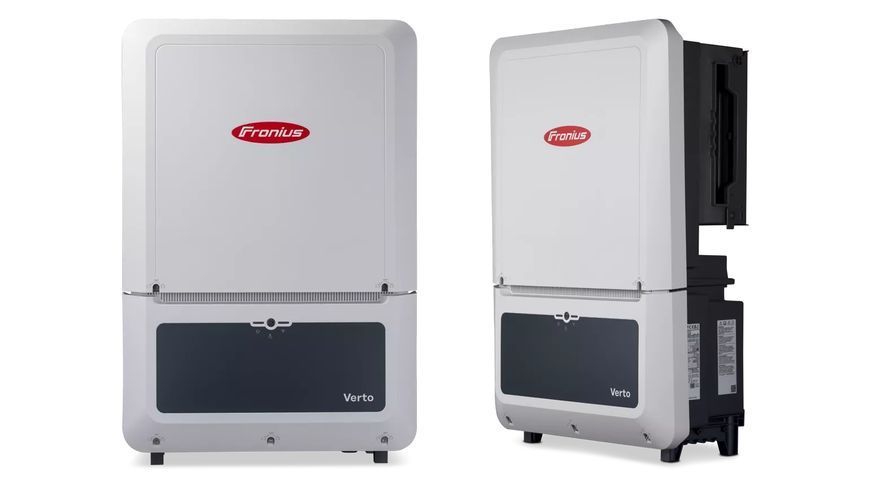

Fronius Verto 30.0 Plus SPD 1+2 — is a powerful three-phase hybrid inverter with a rated power of 30 kW, specially designed for commercial facilities, large households, agricultural enterprises and apartment buildings. The device offers maximum flexibility thanks to three MPP trackers and the ability to work in both new and existing photovoltaic systems. Thanks to the integrated full three-phase backup power function (Full Backup) and support for modern high-voltage batteries, this inverter ensures reliable power supply even for large loads in critical situations.
Technical decoding of the Verto 30.0 Plus SPD 1+2 model
The inverter marking reflects its main functional and design characteristics:
- Verto Plus: Fronius adaptive hybrid platform with integrated battery support and open interfaces for full integration into the facility's energy system.
- 30.0: Rated AC output power of 29 990 W (30 kW).
- 3 MPPT: Presence of three independent maximum power point trackers for operation with complex roof configurations.
- SPD 1+2: Factory equipment with built-in surge protection devices for DC voltage (Type 1+2) and AC voltage (Type 2).
5 key technical advantages of Fronius Verto 30.0 Plus
1. Full three-phase backup power (Full Backup)
In combination with a battery system, the inverter provides powerful full three-phase backup power for the entire facility. The rated backup power of 29 990 VA allows you to maintain the operation of even large consumers such as heat pumps, powerful cooling systems, fans or industrial crushers.
2. Exceptional flexibility and performance in shade
Three high-current MPP trackers support input current up to 28 A per tracker, making the inverter ideal for modern powerful panels. The built-in Dynamic Peak Manager algorithm optimizes energy output even when photovoltaic modules are partially shaded.
3. Maximum safety in basic configuration
The inverter is equipped with integrated DC Type 1+2 and AC Type 2 surge protection, as well as Fronius Arc Guard system for electrical arc detection (AFCI). This guarantees the highest safety standards without the need to install additional external components.
4. High input power and overload capacity
The device allows connection of solar arrays with a total power of up to 45 000 W-peak. This ensures stable energy generation and fast battery charging even in winter or during low solar activity.
5. Compatibility with high-voltage batteries
As a full hybrid, Verto 30.0 Plus is compatible with modern energy storage systems such as Fronius Reserva and BYD Battery-Box Premium (HVM and HVS models).
Detailed technical specifications (30.0 Plus model)
Input data (DC — Solar panels)
- Max. power of PV generator per inverter: 45 000 W-peak.
- Max. DC useful power (Inverter): 39 000 W.
- Number of MPP trackers: 3.
- Input voltage range (Udc min - Udc max): 150 – 1 000 V.
- MPP voltage range (at full power): 360 – 870 V.
- Max. input current per MPPT: 28 A.
- Max. short circuit current per MPPT (Isc pv): 50 A.
Battery connection parameters
- Number of battery inputs: 1.
- Max. charging/discharging current: 50 A.
- Battery input voltage range: 150 – 700 V.
- Max. charging power: 35 000 W.
- Max. discharging power: 29 990 W.
- Connection technology: Stäubli MC4 DC connectors.
Output data (AC — Grid)
- Rated power (Pac r): 29 990 W.
- Max. output power: 29 990 VA.
- Rated output current: 45.4 A (at 380 V) / 43.5 A (at 400 V).
- Grid connection: 3-(N)PE 400/230 V or 3-(N)PE 380/220 V.
- Rated backup power Full Backup: 29 990 VA.
- Total harmonic distortion coefficient (THD): < 1 %.
General parameters and safety
- Maximum efficiency: 98.16 %.
- European efficiency (EU): 97.74 %.
- Dimensions (H×W×D): 865 × 574 × 279 mm.
- Weight (inverter): 43 kg.
- Enclosure protection class: IP66.
- Cooling: Controlled air cooling.
- Surge protection: DC Type 1+2 / AC Type 2.
- Country of manufacture: Austria.
Intelligent monitoring and interfaces
The inverter is equipped with an integrated data logger and web server for complete system control. Connection is via WLAN (802.11b/g) or Ethernet LAN RJ45 ports. Data is transmitted to the free Fronius Solar.web platform. Open interfaces (Modbus TCP SunSpec, JSON) allow easy integration of Fronius Wattpilot charging stations and Fronius Ohmpilot consumption controllers.
Service, design and warranty from «Total-Energy»
As an official Fronius partner in Ukraine, «Total-Energy» provides professional support for business and private projects:
- Official distribution: Supply of exclusively original Fronius equipment directly from Austria.
- Technical engineering: Assistance in calculating complex configurations for three MPPT trackers and modern high-power modules.
- Full Backup integration: Design of three-phase backup power systems and selection of optimal high-voltage battery capacity.
- Warranty support: Complete range of service and warranty maintenance of Fronius equipment in Ukraine.
