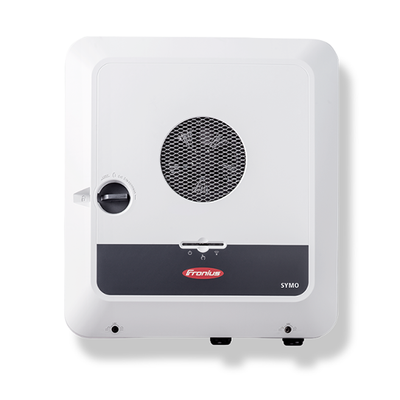

Fronius Symo GEN24 8.0 Plus — is an innovative 8 kW three-phase hybrid inverter designed for private homes seeking maximum energy independence. It combines the functions of a highly efficient grid-tied inverter with the ability to connect batteries and built-in backup power via PV Point. Although the model does not support Full Backup, it is compatible with energy storage systems and integrates into Victron Energy-based hybrid solutions via AC coupling.
Key advantages of the Fronius Primo GEN24 Plus hybrid inverter
- Hybrid inverter with battery connection capability
- PV Point backup power – basic level of autonomy
- High efficiency up to 98.2%
- Protection class IP66 – for indoor or outdoor installation
- 2 MPPT trackers for flexible panel placement
- Built-in web server, Wi-Fi, Modbus, JSON API
- Compatibility with Victron Energy via AC coupling
Technical Features
- Power: 8000 VA / 8000 W
- DC Input Voltage: 80–1,000 V
- MPPT operating range: 80–800 V (nominal – 610 V)
- 2 MPPT trackers 25/12.5 A, short-circuit current 40/20 A
- Grid connection: 3~NPE 400/230 or 380/220 V
- Grid frequency: 50/60 Hz (range 45–65 Hz)
- Standby power consumption: <10 W
- Dimensions: 595 × 529 × 180 mm, weight: 23.4 kg
- Temperature range: from –25°C to +60°C
- Cooling: active, noise <47 dB
- Efficiency: up to 98.2% (European – 97.8%)
Application scenarios
- Hybrid solar systems with batteries
- Private households requiring backup power
- Facilities with Victron Energy systems (ESS, MultiPlus, Quattro)
- Systems with partial consumption and optimization of self-consumption
Service Support in Ukraine
Total-Energo LLC — the official Fronius supplier in Ukraine. The company provides a full range of support services: from equipment selection to professional installation, configuration, and warranty service. We work with hybrid solutions, including Victron Energy.
Communication and monitoring interfaces
- WLAN / 2× Ethernet LAN — connection to Fronius Solar.web
- Modbus TCP / Modbus RTU SunSpec – integration with power grids and meters
- Fronius Solar API (JSON) – open API for custom solutions
- 6 digital inputs / 6 inputs/outputs – for energy management
- 2 × RS485 – for meters, batteries, Fronius Ohmpilot
- AC coupling with Victron Energy — compatibility with Victron ESS, allowing Fronius to be used as a PV source with backup power via Victron MultiPlus/Quattro
