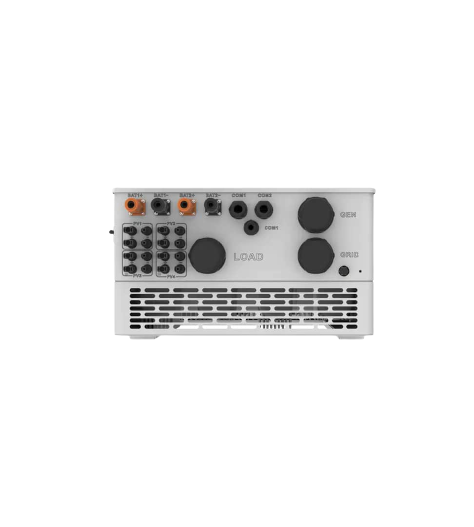

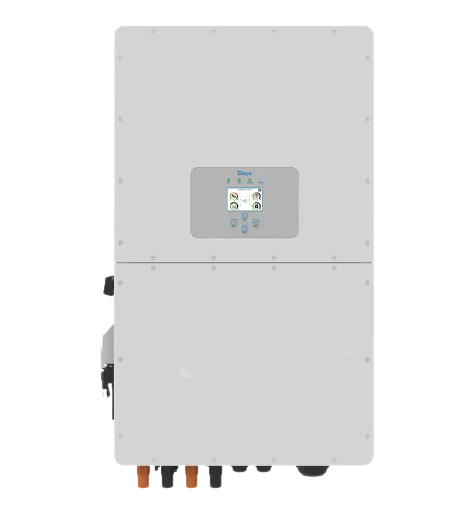

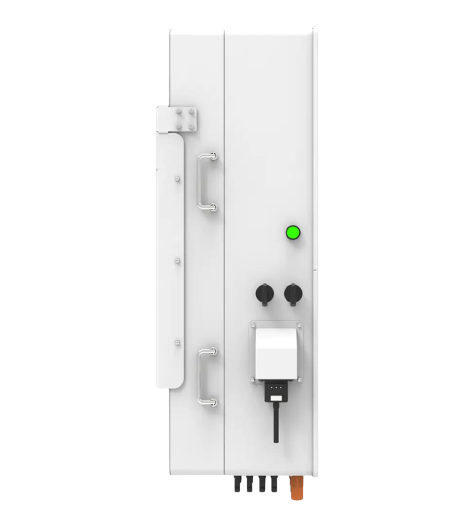

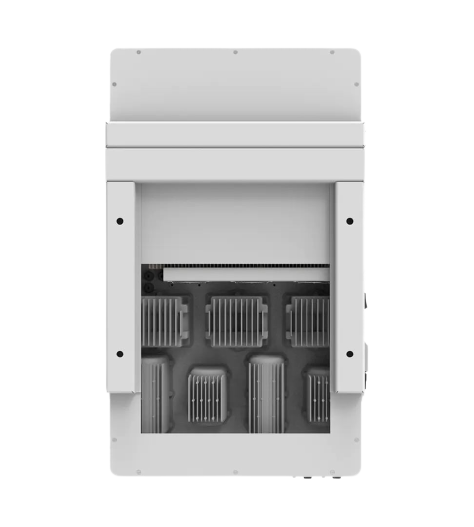

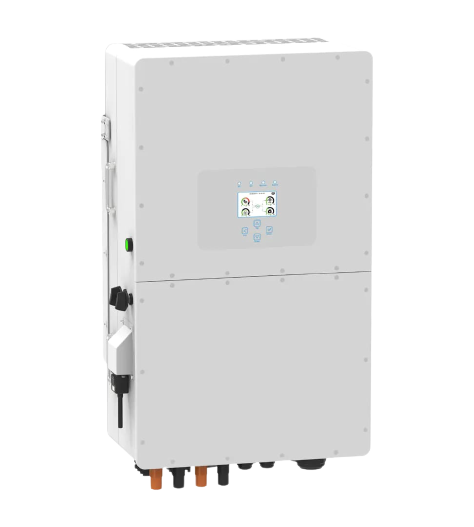

The SUN-50K-SG01HP3-EU-BM4 hybrid inverter from Deye is a powerful and reliable device designed for industrial, commercial, and large-scale residential power systems. The inverter supports high-voltage lithium-ion batteries with voltages ranging from 450 V to 850 V, ensuring high performance and operational safety.
It is equipped with four independent MPPT trackers for efficient energy harvesting from differently oriented solar panels, with a maximum DC input power of 65 kW and a maximum input voltage of 1000 V. The maximum charging and discharging current is 100 A, allowing for rapid energy storage and discharge, while BMS compatibility enhances the system’s overall efficiency.
The inverter has a rated output power of 50,000 W (maximum 55,000 W) and supports parallel connection of up to 10 units to create large-scale systems. Integration with diesel generators is supported, ensuring uninterrupted power supply in the event of emergencies or outages.
The device is equipped with all necessary protection mechanisms: against islanding, short circuits, overvoltage, incorrect connection, residual current monitoring, and more. The IP65 enclosure rating allows for installation in environments with high humidity and dust. The smart cooling system ensures stable operation at temperatures ranging from -40°C to +60°C.
RS485 and CAN interfaces integrate with other system components, and the built-in Wi-Fi module enables remote monitoring and control via a mobile app or web portal. The compact housing and weight of 80 kg facilitate easy wall mounting.
Technical Specifications
- Battery type: AGM, GEL, LiFePO4, Li-ion
- Battery voltage range: 160–800 V
- Max. charge/discharge current: 50+50 A
- Number of battery inputs: 2
- Maximum PV input power: 65,000 W
- Maximum DC input voltage: 1,000 V
- Start-up voltage: 180 V
- MPPT range: 150–850 V
- Rated DC voltage: 600 V
- Number of MPPT trackers: 4 (2+2+2+2 strings)
- Rated output power: 50,000 W
- Maximum output power: 55,000 W
- Rated output current: 75.8 / 72.5 A
- Maximum output current: 83.4 / 79.7 A
- Maximum alternating current: 83.3 A
- Continuous current: 200 A
- Peak power without mains: 1.5 times rated, 10 seconds
- Output voltage and frequency: 220/380 V, 230/400 V; 50/60 Hz
- Protection rating: IP65
- Operating temperature range: -40°C to 60°C (with reduced performance above 45°C)
- Weight: 80 kg
- Dimensions (W×H×D): 527×894×294 mm
Features
- Supports parallel connection of up to 10 devices
- Supports diesel generators
- Built-in Wi-Fi module for remote monitoring
- Smart cooling system
- High reliability and compliance with international standards
Total Energo LLC specializes in the supply, installation, and configuration of Deye inverter systems. We provide a full range of services, including consultation, installation, technical support, and maintenance of energy storage systems.
