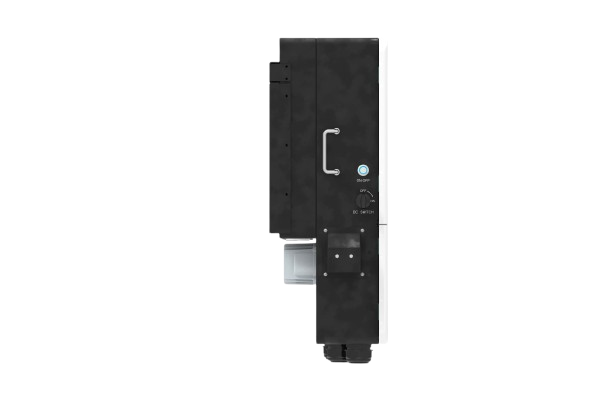

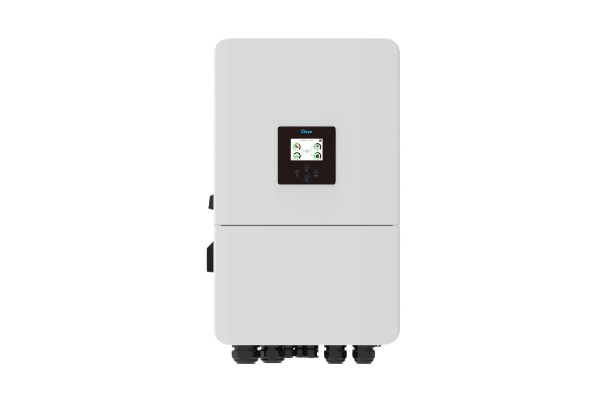

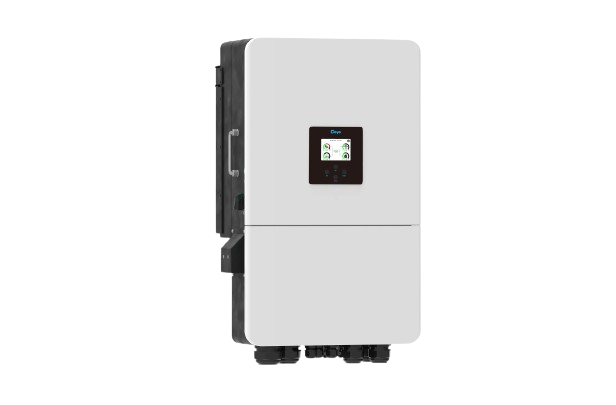

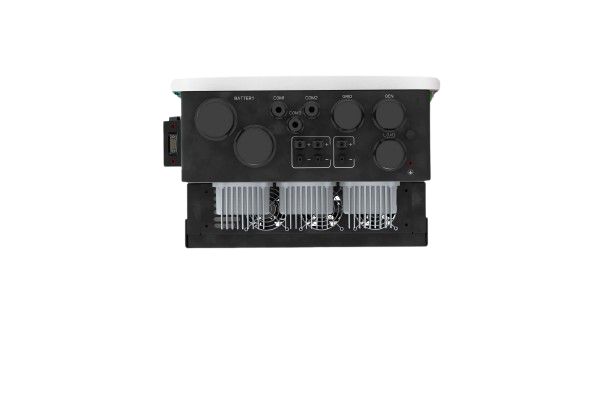

The Deye SUN-16K-SG05LP3-EU-SM2 WiFi hybrid inverter is a reliable and high-performance device for optimizing solar energy utilization in three-phase power systems. The inverter has a power rating of 16 kW, ensuring a stable power supply in both grid-connected and off-grid modes. Thanks to two MPPT trackers, it efficiently converts solar energy, ensuring maximum performance even under varying lighting conditions.
The device supports operation with 48 V low-voltage batteries and is equipped with transformer isolation, which enhances system safety and reliability. The maximum charging and discharging current is 300 A, allowing for rapid battery charging and maintaining a stable power supply. The inverter supports parallel connection of multiple batteries and compatibility with diesel generators, expanding its application possibilities in various scenarios.
Protective functions include output overvoltage protection, short-circuit protection, thermal protection, and monitoring of ground fault and mains currents. Monitoring and control can be performed remotely via Wi-Fi, GPRS, Bluetooth, or LAN. The device features a high IP65 enclosure rating, allowing for installation both indoors and outdoors. It operates within a wide temperature range from -40°C to +60°C.
Technical Specifications
- Battery type: lead-acid or lithium-ion
- Battery voltage range: 40–60 V
- Maximum charge/discharge current: 300 A
- Number of battery inputs: 1
- Maximum PV input power: 25,600 W
- Maximum PV input voltage: 800 V
- MPPT voltage range: 160–650 V
- Number of MPPT trackers: 2 (2+1 string)
- Rated AC output power: 16,000 W
- Maximum AC power: 17,600 VA
- Rated AC input/output current: 24.3 / 23.2 A
- Maximum continuous AC current: 70 A
- Operating temperature range: -40°C to +60°C (≤45°C without performance degradation)
- Protection rating: IP65
- Weight: 50.6 kg
- Device dimensions: 456 × 750 × 268.5 mm
- Cooling: intelligent air cooling
Features
- Supports parallel connection of up to 10 inverters
- Integration with diesel generators
- Six programmable battery charge/discharge time periods
- Protections: short circuit, overvoltage, overload, residual current, etc.
- Remote monitoring and control via Wi-Fi, GPRS, Bluetooth, LAN
- Certified to international safety and quality standards
Total Energo LLC provides high-quality supply, professional installation, and ongoing maintenance of SUN-16K-SG05LP3-EU-SM2 hybrid inverters, ensuring optimal operation and support for power systems of any scale.
