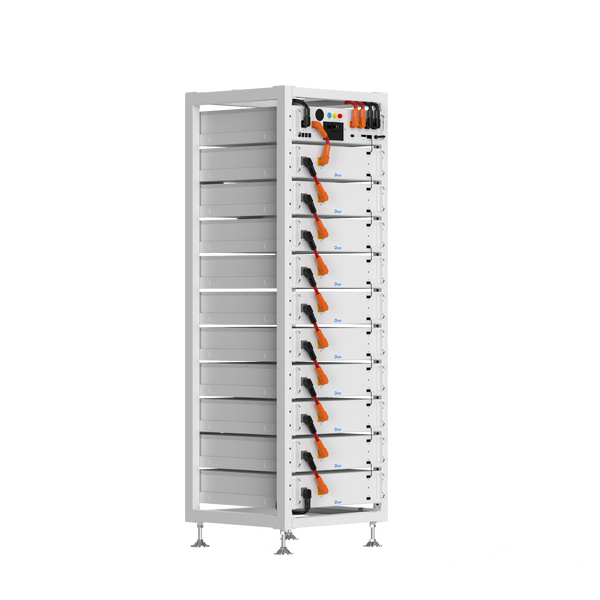

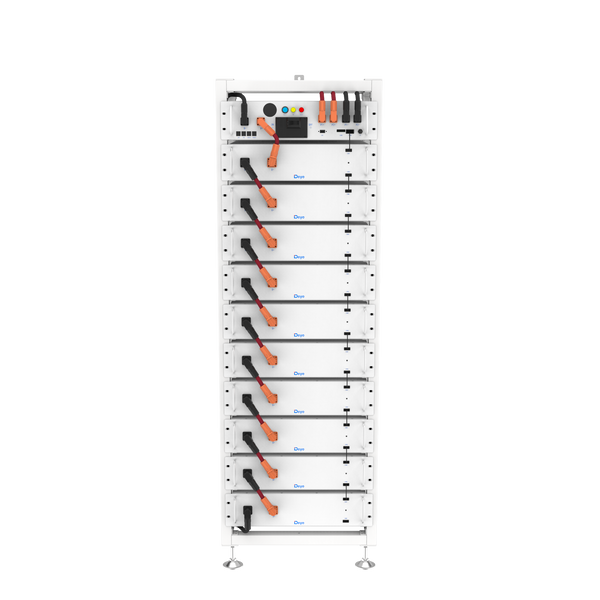

BOS-A-PDU-2 Deye — is a high-tech control unit for clusters of high-voltage batteries of the BOS series, designed for use in commercial and industrial ESS power systems. The device provides intelligent control, balancing and monitoring of the state of each battery cell, automatically regulates the charging and discharging processes, and also protects batteries from overloads, short circuits, overheating and overdischarge. The module is created taking into account modern safety standards and integrates into energy systems with a capacity of up to 80 kW with the ability to scale the battery storage up to 160 kW·h.

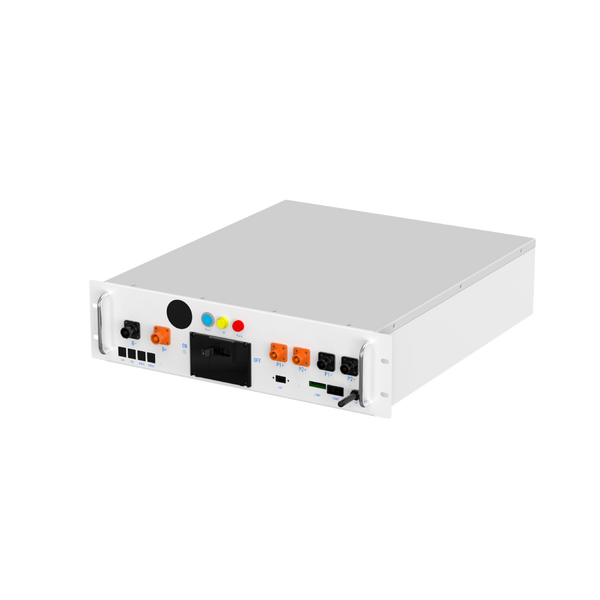

The BOS-A-PDU2 unit is the heart of the Deye BOS system — it coordinates the operation of LiFePO₄ battery modules, ensuring their consistency, control of voltage and current parameters, as well as data transmission to the Deye Cloud system via the TCP protocol. The 3U rack-mountable design provides convenient installation, and USB and Bluetooth interfaces facilitate maintenance. With support for up to 21 battery modules in series, the system allows you to create energy-intensive clusters for high-performance hybrid systems.
Key Benefits
- Smart Control: automatic charge/discharge regulation, cell voltage and current balancing.
- Built-in BMS system to monitor the temperature, voltage and current of each module.
- Protection against overload, short circuit, overcharge and overheating.
- Cloud monitoring via Deye Cloud — full analytics and real-time control.
- Flexible expansion: supports up to 7-21 modules in series, increasing power up to 160 kWh.
- Dual output connectors (100 A each) for connecting two DC inverters.
- USB, CAN2.0, Bluetooth interfaces for flexible control and communication.
- Rugged 3U mechanical design with double electrode separation.
- Compatible with 50-80 kW inverters.
- Full replacement guarantee and a resource of over 6000 cycles at EOL70%.
Technical specifications
- Model: BOS-A-PDU2 (BOS-A series)
- Chemistry type: LiFePO₄
- Capacity per module: 200 Ah
- Nominal system voltage: 268.8 V (7 modules) / 499.2 V (13 modules) / 806.4 V (21 modules)
- Useful system energy: 48.38–145.15 kWh
- System operating voltage: 235.2–919.8 V
- Max. charge/discharge current: 160 A
- Temperature range: charge 0…55 °C / discharge −20…55 °C
- Communication interfaces: CAN2.0, USB, Bluetooth
- Housing protection: IP20
- Humidity: 5–85 % RH (non-condensing)
- Installation height: ≤ 3000 m
- Mounting: rack-mounted
- Dimensions: 610 × 610 × 1900 mm / 2350 mm
- Weight: 558 kg – 1586 kg (depending on configuration)
- Charge/discharge cycles: ≥ 6000 (at 25 °C, 0.5C, EOL 70 %)
- Warranty: 10 years
- Certification: CE, IEC 62619, IEC 62040, UN38.3, VDE-2510
Features
Deye's BOS-A-PDU2 system is designed for efficient power management in hybrid solutions. It supports full integration with the Deye Cloud platform for monitoring, data collection and analytics. The intuitive interface allows you to monitor battery status in real time, update firmware and configure parameters remotely. The device has a modular design that allows you to easily scale the system by adding new battery packs without stopping operation.
A smart BMS with balancing function, double electrode separation and fire extinguishing module make the BOS-A-PDU2 a safe and reliable solution for industrial ESS. High level of automation helps reduce human factor and maintenance costs.
Applications
- Commercial and industrial energy storage systems (ESS);
- Hybrid power plants with inverters 50-80 kW;
- Energy complexes with backup power 50-160 kWh;
- Autonomous power supply systems for large facilities and agricultural enterprises;
- Infrastructure of a “smart city” and medium-level energy clusters.
