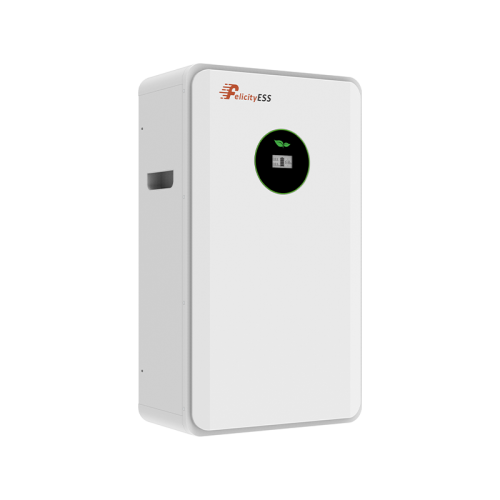

The LUX-E-48250LG03 Felicity battery — is a reliable solution for storing electricity with high capacity and long service life, created on the basis of lithium iron phosphate technology (LiFePO4). It is ideal for alternative energy systems, in particular for solar power plants and autonomous systems, capable of providing stable power for household and commercial needs even in the absence of centralized power supply.
Key characteristics: the battery has a nominal voltage of 51.2 V, a capacity of 250 A·h and a total energy capacity of 12.5 kW·h. The maximum continuous charge and discharge current will be 100 A, and the peak current is up to 150 A for 15 seconds, which allows you to effectively cope with short-term loads. Depth of discharge (DOD) up to 95% ensures maximum energy utilization without compromising battery life. The battery is designed for over 6000 charge-discharge cycles, which ensures durability and cost-effective operation.
Scalability and safety: Up to 15 batteries can be connected in parallel, which allows you to increase the total system capacity to 187 kWh, which is suitable for large buildings, businesses and industrial facilities. The built-in intelligent battery management system (BMS) provides multi-level protection against overheating, overvoltage, short circuits, overloads, as well as comfortable control via LCD display and remote monitoring using Wi-Fi module.
Technical specifications
- Battery type: LiFePO4
- Nominal power: 12.5 kWh
- Nominal capacity: 250 A·h
- Nominal voltage: 51.2 V
- Recommended charge/discharge current: 100 A
- Maximum continuous charge/discharge current: 150 A
- Peak charge/discharge current (15 s): 200 A
- Maximum number of modules in the system: 15 (up to 187 kWh)
- Depth of discharge (DOD): ≥95%
- Display type: LCD
- Protection level: IP21
- Operating temperature range: charge 0°C…+55°C, discharge -20°C…+55°C
- Storage temperature range: 0°C…+35°C
- Humidity: 5%…95%
- Communication mode: RS485/CAN
- Service life: ≥6000 cycles (25°C ±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)

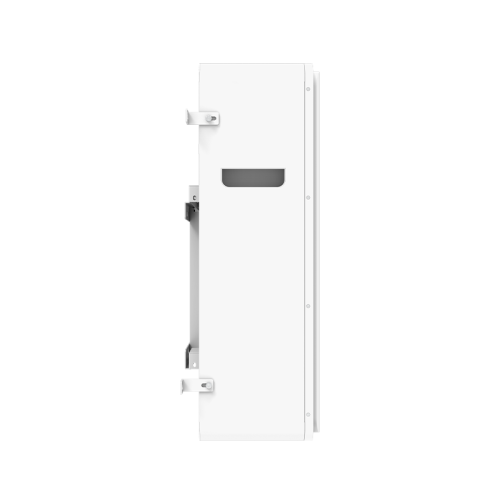

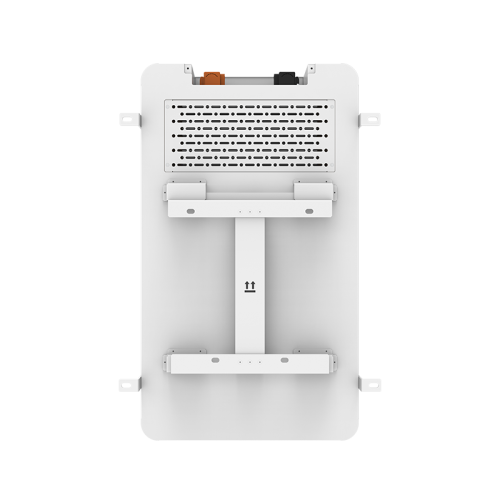

- Mounting: wall or floor
- Protection: built-in intelligent BMS, circuit breaker, fuse
- Net weight: 110 kg
- Dimensions: 783x450x274 mm
Advantages and features
Due to its high capacity and efficiency, the battery provides long-term and reliable power supply for various systems. Intelligent BMS supports multi-level protection and safety of operation, and the Wi-Fi module simplifies real-time monitoring of parameters. Scalability allows you to expand the system according to the user's needs, which makes this device universal for large and medium-sized alternative energy systems.
