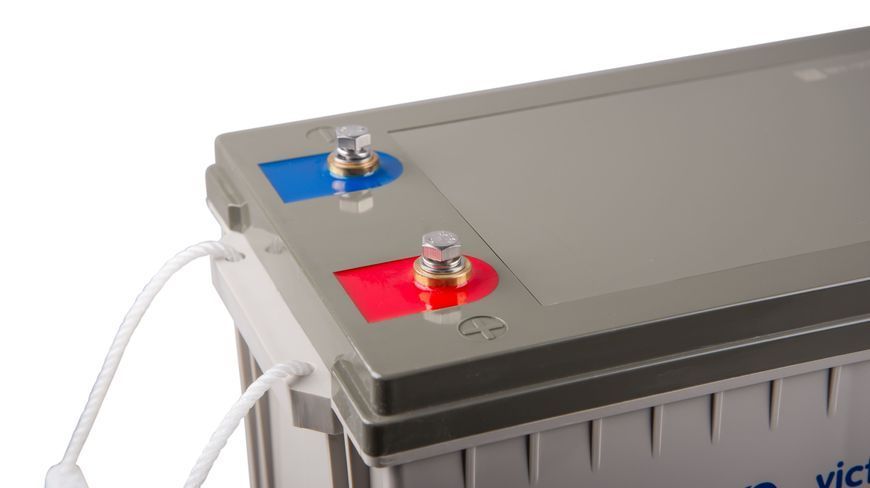

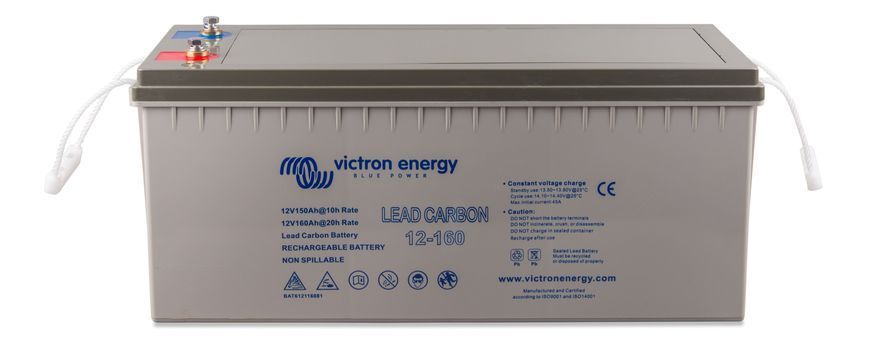

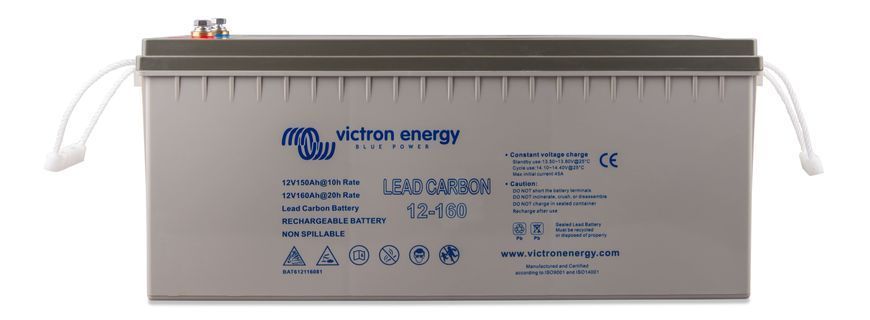

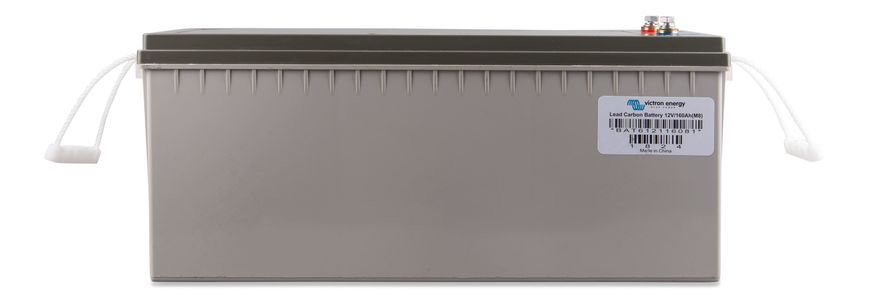

Lead Carbon 12V/160Ah battery combines the advantages of classic VRLA AGM technologies with improvements due to the addition of carbon material to the negative plate. This significantly improves the ability to operate in partial charge mode, reduces sulfation and extends the resource. The ideal solution for systems with frequent charge-discharge cycles, including solar off-grid systems.
Key advantages of the Victron Lead Carbon battery
- Capacity 160 Ah at 12 V – excellent option for powerful UPSs, stand-alone systems and hybrid installations.
- Over 1000 cycles at 60% discharge, over 500 cycles at 100% discharge.
- Improved performance under partial charge conditions (PSOC) – reduced sulfation and longer service life.
- Low charging voltage – less heat load, less corrosion.
- Suitable for intensive cyclic operation – confirmed by Victron Energy tests.
- M8 Insert standard housing – reliable mounting for stationary or mobile use.
- Reduced heat dissipation during charging – more effective even in confined spaces.
Technological features
- Lead Carbon technology: carbon composition in the negative plate reduces sulfation and accelerates charge acceptance.
- High efficiency during cyclic use: especially in solar systems, where deep discharges occur regularly.
- Temperature stability: the battery withstands the load without overheating even during active charging.
- Guaranteed long service life: confirmed ability to withstand more than 1000 cycles with partial discharges.
Usage scenarios
- Mobile solutions (campers, yachts) – optimal for medium inverter systems with high efficiency.
- Backup power for offices or residential buildings – great option for hybrid or backup ESS.
- Industrial installations with generator feed – thanks to fast charging from the generator.
- Partial charge systems – endurance even without a full charge.
- Solar stand-alone systems – the battery is ideal for cyclic use in combination with MPPT controllers.
Recommended charging parameters
-
Absorption: 14.1 – 14.4 V
-
Floating charge: 13.5 – 13.8 V
- Storage: 13.2 – 13.5 V
- Recommended charge current: 16 A (ideal – 10% of capacity), permissible – 11 –24 A (7 –15%), maximum – up to 32 –48 A (20 –30%) according to specifications
Quality charge and monitoring
- Chargers: Blue Smart IP22 / IP65 / IP67 – for gentle and stable charging.
- Balancing: Battery Balancer – for balanced charging of 24/36/48V systems.
- Battery protection: BatteryProtect or Smart BatteryProtect – protection against deep discharge.
- DC-DC charge: Orion-Tr Smart – for charging from generators.
- Battery monitoring: Battery Monitor BMV-700, BMV-712 Smart or SmartShunt 300A – control of voltage, current, SOC and time to full charge/discharge.
Support in Ukraine
LLC “Total-Energo” — official partner of Victron Energy in Ukraine. We provide full support: from design to commissioning, as well as warranty and post-warranty maintenance of batteries and systems based on them.
