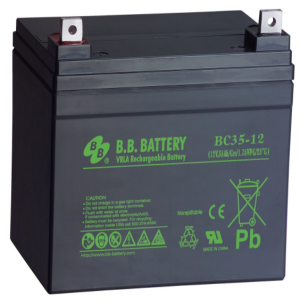

The compact and reliable BB Battery BC35-12/B7 battery (12V 35Ah) is a representative of the BC series with AGM technology, which provides high reliability and durability with minimal maintenance. Thanks to the sealed design without free acid, the battery can operate in any position except upside down. An ideal solution for backup power systems, security panels, telecommunications and medical equipment.
Key advantages of the BB Battery BC series battery
- Nominal capacity 35 Ah (C20) – stable operation even with prolonged consumption.
- Voltage 12V – standard for most backup and telecommunications systems.
- Maximum discharge current – up to 350A (5 seconds) for short-term peak load.
- Maximum charge current – 10.5A, which ensures safe and efficient charging.
- AGM (Absorbent Glass Mat) technology – high energy density and vibration resistance.
- Hermetic case – the battery is maintenance-free and does not contain free acid.
- Ability to operate in a wide temperature range: from –20°C to +50°C.
- Low internal resistance – less than 25 mOhm for fast response to load.
Technological features
- VRLA technology – valve-regulated system without evaporation.
- Housing material – durable ABS plastic UL94-HB; optional flame-retardant version UL94-V0 is available.
- Terminal type – B7
- Durability – more than 7 years of operation in buffer mode (at 25°C).
- Certification – complies with IEC 61056-1, JIS C 8702-1, GB/T 19639.1 .
- Certification of Ukraine – yes, certified! Request certificates after payment, provided in electronic form, if necessary – paper with a seal.
Usage scenarios
- UPS and backup power supply – for stable operation of network equipment and servers.
- Security and fire alarm systems – ensuring autonomous operation in case of accidents.
- Telecom networks and base stations – as a buffer power source.
- Portable lighting systems, tourist equipment – power supply in the field.
- Medical equipment – battery backup during power outages.
- Speaker systems and light sources for fishing – as a reliable source of energy.
High-quality charging and monitoring
For maximum service life and stable operation, it is recommended to use:
- Chargers: Victron Blue Smart IP22, Blue Smart IP65, Blue Smart IP67.
- BatteryProtect: to prevent deep discharge.
- Orion-Tr Smart: charging from a car generator.
- Battery Balancer: balancing voltage in series-connected batteries (24V, 36V, 48V).
- Battery status monitors: BMV-700, BMV-712 Smart, SmartShunt 300A/500A.
