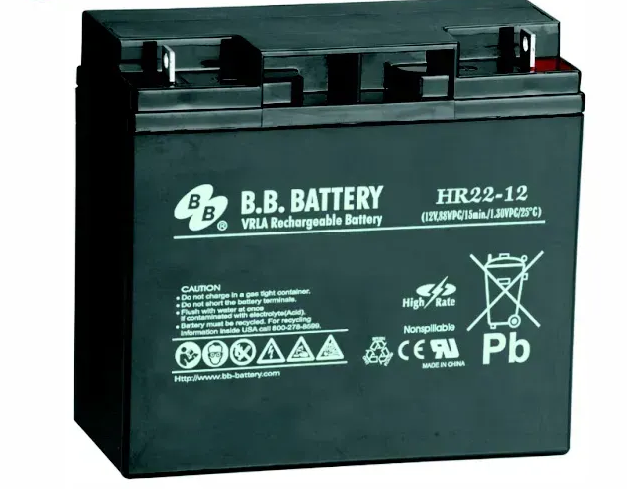

BB Battery HR22-12/B1 12V 22Ah — is a compact AGM VRLA battery with increased power output by 30% in short-term cycles. It is optimized for use in uninterruptible power supply systems (UPS), where high power is required for several minutes. Reliable design, the ability to mount in any position, low self-discharge and safety certificates.
Key advantages of the BB Battery HR series battery
- Nominal capacity: 22 Ah at 20-hour discharge.
- Maximum discharge current: 300A (5 seconds) — high performance for peak loads.
- Operating life up to 10 years at a temperature of 20°C!
- Maximum charging current: 6A — fast charging.
- Low internal resistance < 9 mOhm — stable energy supply even at high current.
- Service life: up to 5 years in buffer mode.
- Certificates: IEC 61056-1, JIS C 8702-1, GB/T 19639.1.
- Ukrainian certificates are available upon request after purchase in electronic or paper form.
- 30% more power for 5-15 minutes of discharge than the standard BP series.
Technological features
- AGM technology — electrolyte absorption by a fiberglass separator.
- Flame arrestor — safe gas removal.
- Hermetic design — allows installation in any position except upside down.
- Vibration resistance — recommended for transport and equipment.
- Choice of terminal type (B1, T2, I1) — for various installation scenarios.
Usage scenarios
- UPS systems (UPS) — power supply for servers, banking equipment.
- Medical equipment — reliable support for devices in clinics.
- Electric trolleys, wheelchairs — stable power supply.
- Lawn mowers — suitable for electric models.
- Golf carts — high power over short distances.
- Security alarm and fire extinguishing systems.
Quality charge and monitoring
For maximum efficiency and durability of HR22-12/B1, it is recommended to use:
Chargers:
- Blue Smart IP22 / Blue Smart IP65 / Blue Smart IP67 Charger.
Protection against deep discharge:
- BatteryProtect 12/24V 65A or 100A.
DC-DC charging in transport:
- Orion-Tr Smart 12/12-9A or 12/24-15A.
Battery status monitoring:
- BMV-700, BMV-712 Smart or SmartShunt 500A.
Balancing when connected to 24/36/48V:
- Battery Balancer.
Power on demand
HR22-12/B1 is a battery for UPS, capable of delivering 902 W of power in 5 minutes.
