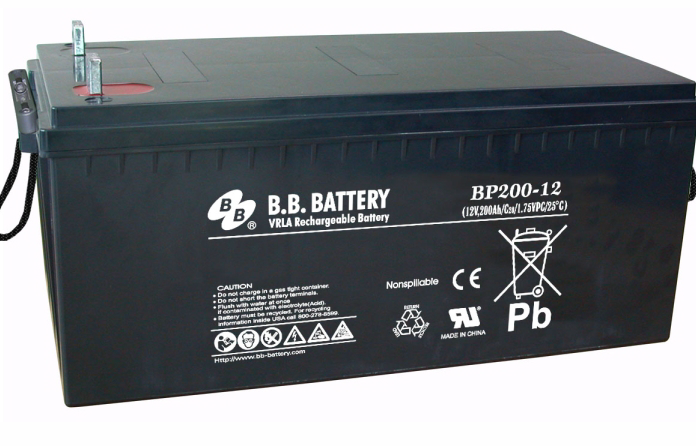

AGM battery BB Battery BP200-12/I3 (12V 200Ah) – BP series - BBBP2000TE

The BB Battery BP200-12/І3 battery is a high-quality VRLA battery with AGM technology that does not require maintenance. Its capacity of 200 Ah at 12 V ensures long-term autonomous operation in energy, telecommunications, emergency and industrial systems. Due to its low self-discharge, high reliability and easy installation, this battery is ideal for systems that must operate uninterruptedly for years.

Key advantages of the BB Battery BP battery

1. Nominal capacity: 200 Ah (at 20-hour discharge) – stable power supply for long and short cycles.
2. Maximum discharge current:800A (5 sec) – readiness for peak loads.
3. Maximum charging current: 60A – efficient fast charging.
4. High quality housing – ABS UL94-HB or flame-retardant UL94-V0 (optional).
5. Safety certificates: IEC 60896-21/22, JIS C 8704-2, GB/T 19638.2 .
6. Ukrainian certificates are available – after purchasing batteries on separate request in electronic or paper form.
7. Service life – up to 10 years in buffer mode.
8. Operation in any position (except upside down) – flexible installation.

Technological features

• AGM technology (Absorbent Glass Mat) – electrolyte is absorbed into a fiberglass separator.
• Built-in gas vents with Flame Arrestor – ignition prevention.
• Low internal resistance ≤ 2.5 mOhm – stability under load.
• Self-discharge < 3%/month – long-term storage without recharging.
• Temperature range:
  • Charge: 0…40°C
  • Discharge: –20…50°C
  • Storage: –20…40°C

Usage scenarios

1. UPS (UPS) – for critical IT systems and server rooms.
2. Telecommunications – support for the operation of base stations and switching nodes.
3. Medical equipment – ensuring the operation of devices in medical institutions.
4. Emergency lighting – autonomous power supply during power outage.
5. Industry – power supply for power tools, automation systems.
6. Transport – electric platforms, trolleys, boats.
7. Security systems – alarms, video surveillance.

High-quality charge and monitoring

For optimal battery performance, it is recommended to use:

Chargers:

• Blue Smart IP22 Charger – for stationary charging;
• Blue Smart IP65/IP67 Charger – for wet or mobile environments.

Deep discharge protection:

• BatteryProtect or Smart BatteryProtect 12/24V 65A–220A.

Charging from generators/cars:

• Orion-Tr Smart DC-DC Charger – for charging from the engine.

Monitoring:

• Battery Monitor BMV-700, BMV-712 Smart, or SmartShunt 500A.

Balancing (when connected to 24/36/48V):

• Battery Balancer – prevents uneven charging.
